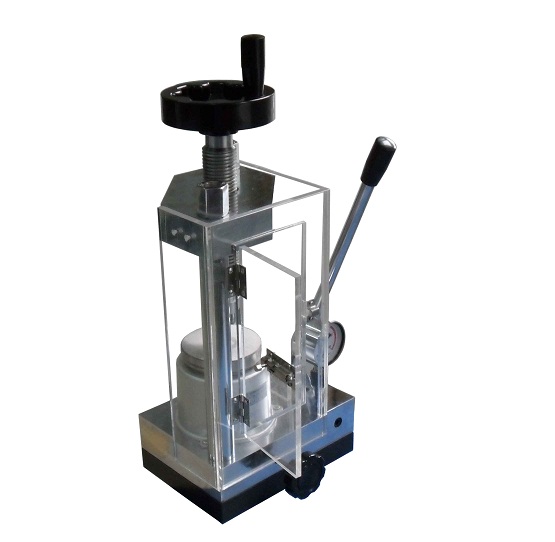

12T Laboratory Press with built in Hydraulic Pump & Safety Cover - EQ-YLJ-12T
|
Click to enlarge
|
In stock
Item Number: EQ-YLJ-12T
|
Model EQ-YLJ-12T is a desktop manual pressing machine up to 12 metric tons for materials / chemistry research laboratories to prepare compound ceramic sample. EQ-YLJ-12T has built in Hydraulic pump with auto return function and transparent protection cover. It is suitable for operation in a glove-box under oxidizing and inert gas atmosphere.
| Specifications
|
|
Max Pressure
|
12 metric tons ( 20 Mpa)
|
|
Max lifting height of bottom cylinder
|
25 mm
|
|
Top support screw adjustable height
|
150 mm
|
|
Working space under frame
|
160 (L) x 160(W) x 150 (H), mm
|
| Protection cover
|
Transparent plastic ( click picture below )
|
|
Dimension of machine
|
270 (L) x 200 (W) x 450 (H), mm
|
Length of the Press Rocker
|
16.5''
|
|
Net weight
|
30 Kg ( 66 lbs)
|
|
Dimension of shipment
|
20" x 22" x 24"
|
|
Weight of shipment
|
180 lbs
|
|
Press dies
|
Pressing dies with various diameters are available up on request at extra cost
|
|
Upgrade optionals
|
This compact press can be placed in our VGB-3 ( put in through window and VGB-4 Glovebox ( put in via airlook ) to press some air sensitive material under inert gas
|
| Standard Package
|
| No.
|
Description
|
Qty
|
|
| 1
|
YLJ-12T Laboratory press with built in hydraulic pump
|
1 unit
|
|
2
|
Metric speed wrench (4,5,6,8,10,12#)
|
1 set
|
|
| 3
|
Operation manual CD
|
1 pc
|
|
Warning: Please must always wear protection goggles during operation !!!
Please click the picture below to watch this instruction video of press machine and pressing die.
|
|
| | |
|
