Disassembling Machine for All Button Cells of CR2016 , CR2025 & CR2032 and Optional Die for CR2325 or CR2450 MSK-110D
|
Click to enlarge
|
In stock
Item Number: MSK-110D
Personalization
* denotes required field
Discrimping/Disassembling die*
|
MSK-110D is a newly designed CE Certified coin-cell disassembler with lighter weight and smaller size. The disassembler separate all types of CR20XX series coin cells by one die, such as CR2032, CR2025 and CR2016 without destroying the internal of the cell to study inside materials, and also, CR2325 or CR2450 discrimping die for your option. What is more, customer can easily change the discrimping/disassembling die to crimping to convert it to MSK-110.
|
|

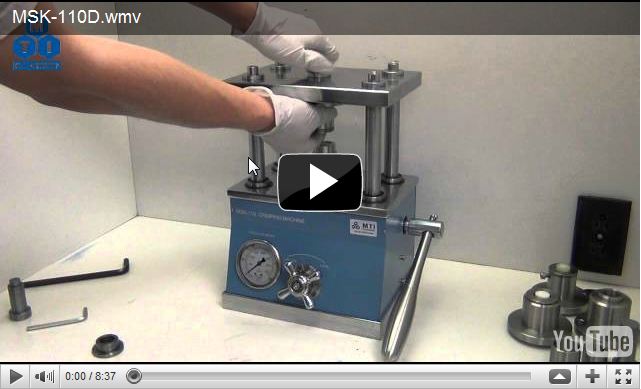

Click the picture below to see MTI's coin cell cases disassembled
|

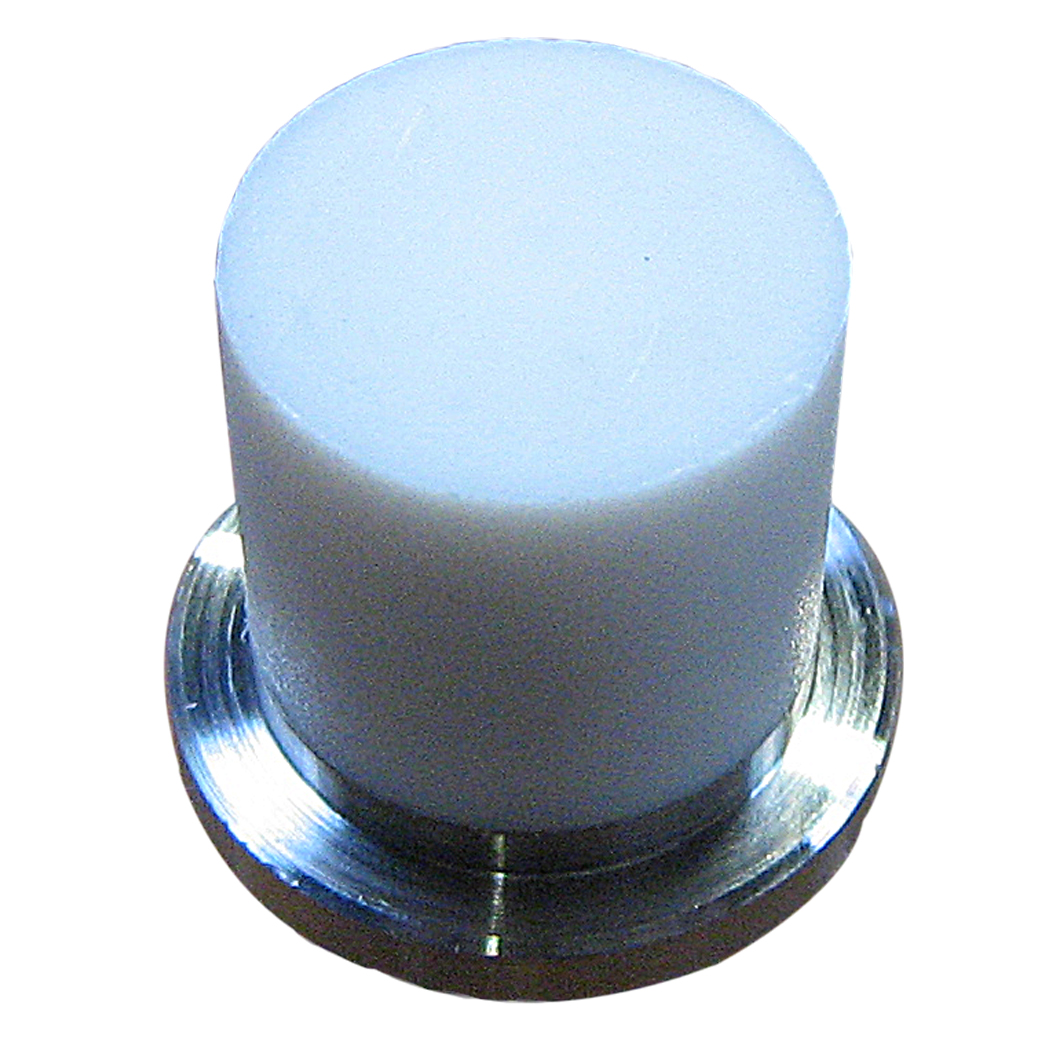

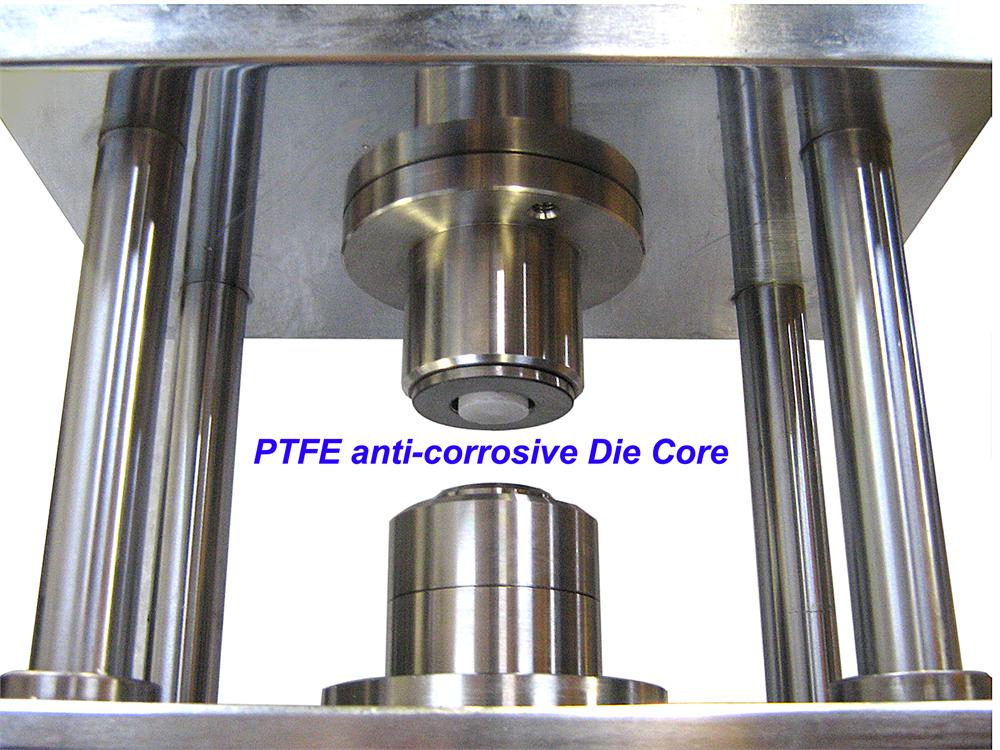

PTFE anti-corrosive Die Core can also prevent the coin cells from being short circuited.
|
Specifications:
- Pressure: Max. 8 metric Tone hydraulic with automatic return
- Dies: One set of disassembling dies for all CR20XX coin cell, such as CR2032, CR2025 and CR2016, CR2325 and CR2450 discrimping die at extra cost.
- Structure: Heavy Duty Steel plate
- Net Weight: 25Kg
- Machine overall Dimension: 228L x 176 W x 310H mm
-
Shipping Weight : 35 K
 Attention: The built-in small hydraulic pump is not designed for holding the high pressure, pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is enough for disassembling the coin cell).
 Operation Manual
|
|
| | |
|
