Compact Recirculating Water Chiller with 10L/min Flow, 220V - EQ-CCA1110-220
|
Click to enlarge
|
Please email to info@mtixtl.com for lead time.
Item Number: EQ-CCA1110-220
|
CCA1110 recirculating chillers provide a clean, reliable source of temperature-controlled fluid for open tanks and closed loop systems. They eliminate scale buildup, sewerage cost, and tap water cooling expenses.

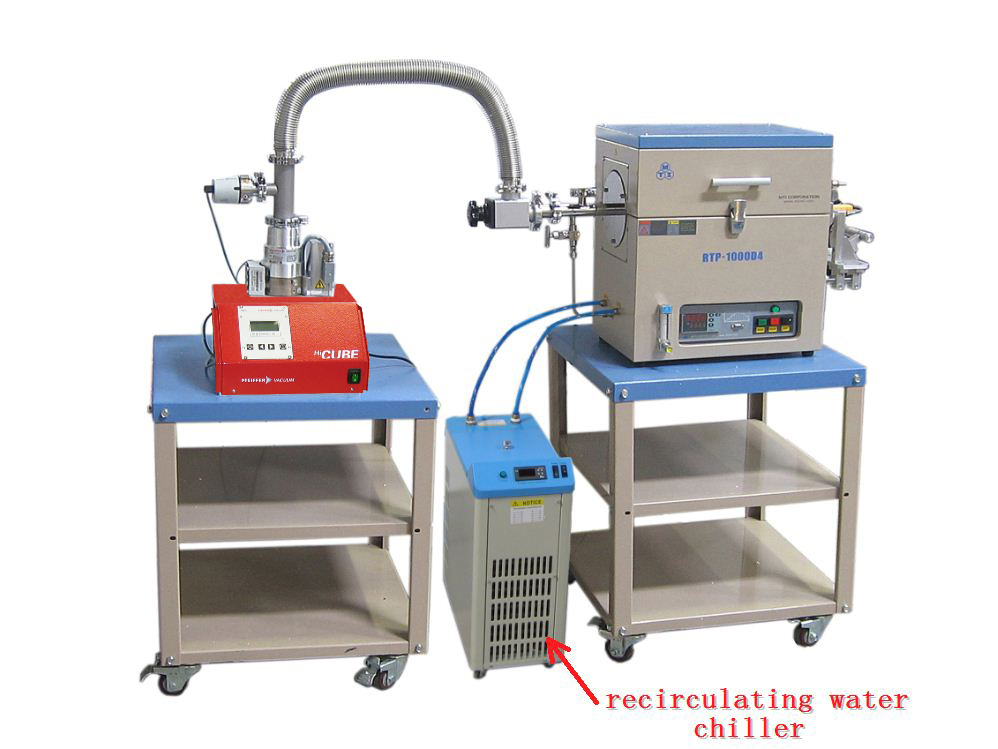

This 4.0L (1.1gal.) chiller provides high cooling at low cost and has a convenient digital read and set display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chillers have a temperature stability of ±2°C and are equipped with Ø12mm inlet/outlet polyurethane tube connectors, as well as four wheels on the bottom for easy moving. Temperature range can be adjusted from 5 to 35°C. It is suitable for MTI RTP1100D4 furnace, EC400 dice saw and any lab equipment that need water cooling at less than 4L/min flow rate.
Specifications:
|
Power Supply
|
AC 208 - 240V (50/60Hz)
|
|
Total Power Input
|
450W
|
|
Cooling Capacity
|
600W
|
|
Compressor
|
Rotary Compressor
|
|
Refrigerant
|
R134a
|
|
Temperature range to control
|
2 - 35°C
|
|
Temperature accuracy
|
± 1 °C
|
|
Heating exchanger
|
Stainless steel
|
Pipe connectors
|
one water inlet (Ø12mm polyurethane tube connector)
one water outlet (Ø12mm polyurethane tube connector)
one drainage valve
click to enlarge
|
|
Water Flow Rate
|
10Liters / minute, 40PSI in pressure at inlet/outlet
|
|
Water Tank
|
4Liters (1.04 Gallon) made of stainless steel
|
|
Protection
|
Protected from over-temperature and Min 0.75 L/min water flow
|
|
Overall Dimension
Shipping Weight
|
22 x 46 x 53 cm (8.7”W x 18”L x 28”H)
100 lbs
|
|
|
|
Recirculating Water Chiller system can provide the excellent cooling effect
|
|
|
|
|
|
