Dual Quartz Tubes (5"/4") & Three Zones CVD Furnace upto 1200°C for Graphene Film - OTF-1200X-III-D5-4
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-III-D5-4
|
OTF-1200X-5-III-D4 is a dual tube and three-zone tube furnace with max. working temperature of 1200°C for growing film on metallic foil by CVD, especially designed for make graphene and flexible electrode for solar or battery electrode.
|
Features:
- Dual quartz tube: 130 mm dia (5"). outside tube suspended by 101 mm dia (4") tube inside. metallic foil will be wrapped inside tube surface for CVD reaction
-
Vacuum sealing flanges for dual tube, which allow reactive gas go through between two tube ( 20mm space ) for reaction, and Forced air can go though center tube for fast cooling.
-
Max. Working Temperature: 1200°C
-
Valve and vacuum gauge are included
-
Please click picture on right to see principal of the furnace
|
 Please click below for a related article: "Roll-to-roll production of 30-inch graphene films for transparent electrodes "
|
|
SPECIFICATIONS
|
| Furnace structure
|
-
Three heating zones: (900mm, 36" in total)
-
Three precision temperature controllers with 30 segment programmable and +/- 1°
C accuracy.
-
Max. Working Temperature: 1200°C
-
Continuous Working Temperature : 1100°C
-
Heating Rate: <= 20°C /min
|
| Power
|
|
| Processing Tubes
|
Two High purity Fused Quartz Tubes included
Outside tube: 130mm O.D. x 122 mm I.D. x 1480 mm
Inside tube: 102mm O.D. x 94 mm I.D. x 1540 mm
|
| Vacuum sealed flanges
|

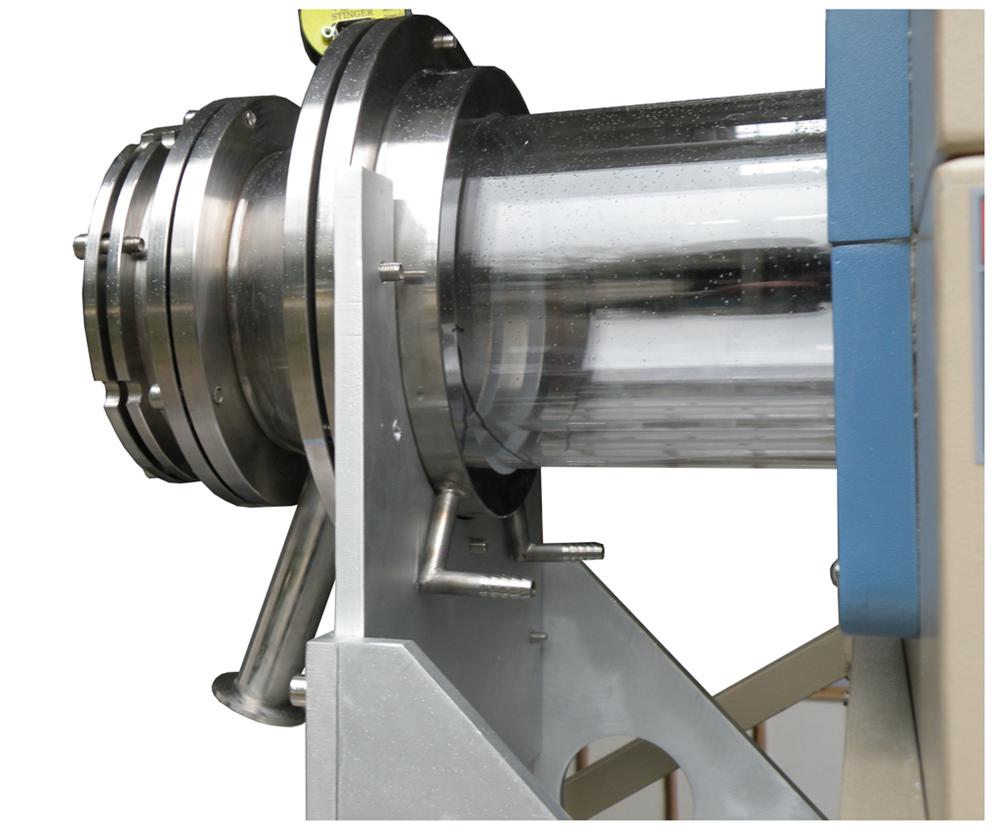

- One pair of flange made of SS304, which seals tightly between tubes by two high temperature O-rings (10-2 by mechanical pump and 10-5 by molecular pump ).
- The flange is built with water cooling jacket. When working temperature > 900°C it is required to use cooling water. You may either use tap water or use our chilling water circulation at picture below
- One KF25 adapter is installed on left flange to connect a vacuum pump.
- One stainless steel needle valve is installed on right flange (please choose connector at picture below before order)
|
|
Optional. Please click to order separately
|
|
| Optional
|
Copper Foil for Graphene Growth (150m length x 150mm width x 25um thickness) - EQ-bccf-25u:
|
| Furnace Dimension
|
1030 x 430 x 580 mm ( not included flange and tube )
|
| Net Weight
|
about 90 kg
|
| Shipping package size after crating
|
65x45x35 "
|
| Shipping weight
|
340 Lbs
|
|
Certificate & Warranty
|
One year limited warranty for electrical parts.
(Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty,
please order the replacement at related products below.)
 CE Certified
|
Related instuction video
- tube installation
 |
Sale Price: USD$19,995.00
|
Sale Price: USD$31,950.00
|
|
Sale Price: Call for Price & Delivery
| | |
|
| | |
|
