Mini CVD Tube Furnace with 2 channels Gas Mix System and Vacuum Pump - OTF-1200X-S50-2F
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-S50-2F
|

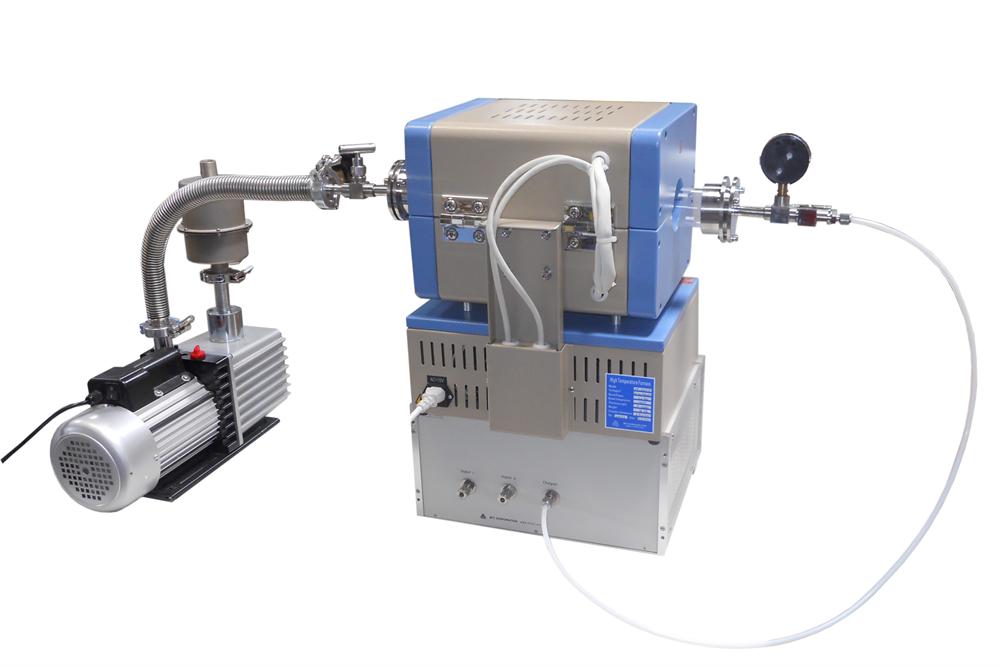

Mini CVD Tube Furnace with 2 channels gas mix system and vacuum pump - OTF-1200X-S50-2F
OTF-1200X-S50-2F Mini CVD tube furnace is a CE certified split tube furnace for heating samples up to 1200°C. A KF25 Gas Outlet and a Digital Vacuum Gauge are installed in the right flange for connecting with a 226L/m Mechanical Pump (with Pump Filter). The left flange is used for connecting the 2 channels gas mix station through the 1/4" gas pipe. The precision temperature controller will provide 30 segments heating and cooling steps with +/- 1 °C accuracy.
Specifications
| Furnace
|
Structure
|
Heavy duty steel casing
Energy efficient Al2O3 fibrous thermal insulation
|
|
Power consumption
|
1.75KW
|
| Voltage
|
AC-110V or AC -220V (Select the voltage in the option bar)
|
| Temperature
|
1200 max. for < 1hr
1100 for continuously heating
Heat-up rate <= 10C/min
|
Processing tube
|
Quartz tube 50 x 43 x 450mm (O.D x I.D x Length)
|
Heating zone
|
Total heating zone: 8" (200mm); Constant temp. zone: 2.3" (60mm) (+/-1°C) @ 900 °C.
The following picture shows the temp. distribution across the heating zone, please click to enlarge.
|
Temp. controller
|
Solid relay control circuit
PID temperature control with 30 steps programmable.
Control accuracy: +/- 1
|
| Heating element
|
Fe-Cr-Al Alloy doped by Mo
|
|
|
|
Two Channels Gas Station
|
-
Two Floating Flow-meter with flow rate range from 16 to 100 mL/min
- Three Mechanical Pressure Gauge (mixing tank): -0.1-0.15 MPa, (0.01 MPa/grit)
-
Vacuum needle valves made of SS304
-
Three Pipe fittings for 1/4" pipe (nylon or stainless steel) (on the back panel)
-
Compact size: 340Lx300Dx 180H, mm ( 13.4"x12"x7").
-
Net: Weight: 14 lbs.
-
No power required
Click the pic to see the details
|
Vacuum flange and fittings
|
Structure (click the pic to enlarge)
Left side Right side
Vacuum fittings in standard package are:
|
Vacuum pump
Click the pic to see the details
|
|
| Product net weight
|
100 lbs
|
Product dimension
|
Furnace 340 x 300 x 400
Vacuum pump 440 x 160 x 300
Gas station: 340 x 300 x 180
|
| Shipping weight
|
200lbs
|
| Shipping dimension
|
|
Warranty
|
One year limited warranty
Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty
|
Certificate
|
 CE certified
|
|
