Precision CNC Dicing / Cutting Saw with Digital Controller and Complete Accessories - SYJ-800
|
Click to enlarge
|
In stock
Item Number: SYJ-800
|
SYJ-800 is a CE certified dicing saw designed for dicing and cutting almost all kinds of materials up to 8" diameter wafer or 8" L x 8" W x 1" H components at low cost. The SYJ-800 saw can be programed by controll panel with position accuracy of 0.01 mm or better. The sample stage with two-angle adjustment allows customers to cut materials at the desired angle with +/- 0.5° tolerance. It is an excellent tool for dicing Al2O3 ceramic sheet and Si or Ge wafer for electronic substrate and solar power panel.
SPECIFICATIONS
Voltage
|
AC 110V (If using AC 220V 50/60Hz please contact us)
|
| Motor
|
1/2 HP high torque DC motor (110V) with selectable speed: 0-1400 or 0-3000.RPM
|
| Effective Cutting Range
|
Three dimension: X-axis: 8" Y-axis:8" Z-axis: 2" ( depth )
|
| Accuracy
|
0.0025 mm moving resolution and 0.01 mm position accuracy.
|
| Cutting Blades Kits
|
Two diamond blade is included:
|
| Control mode
|
Manual control / Automatic digital control from control box
|
| Sample stage and Holder
|
One 8" diameter flate sample holder and 8" vacuum chunck are included
( wafer glue on 8" holder, then the holder is soaked by vacuum chunck
|
| Water Cooling
|
Assemblies of water jetting, draining, and splashing protection are included.
|
| Net WT& DIMEN
|
Net Weight: 50 kg
|
| Shipping WT & DIMEN
|
Shipping weight : 150 lbs
|
Warranty
|
One year limited --- including all electronic and mechanical parts, but not including damages caused by misuse, such as rusted part from inadequate storage and broken parts by the user.
|
| Certification
|
 CE certified
|

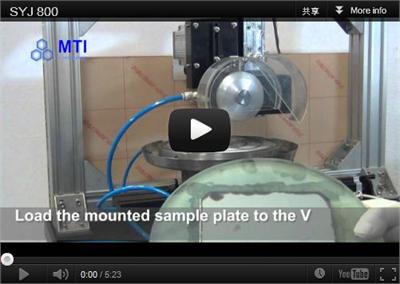

| Operation Video
|
|
|
|
Standard Accessories:
| Part No
|
Description
|
Quantity
|
Price for replacement, USD
|
|
| EC 801
|
Controller with connecting cables, power cord
|
1 set
|
$850.00/set
|
|
|
120L/min Oilless Vacuum Pump
|
1 set
|
$498.00/ea
|
|
| EC 802
|
Ø203.2mm dia. vacuum chuck
|
1 pcs
|
$150.00/ea
|
|
| EC 803
|
Water splash guard for covering 6" blade
|
1 pcs
|
$140.00/ea
|
|
| EC 804
|
Water splash guard for covering 4" blade
|
1 pcs
|
$100.00/ea
|
|
| EC 805
|
Wax for gluing samples
|
4 pcs
|
$5.00/ea
|
|
| EC 806
|
Graphite plate for holding samples
|
2 pcs
|
$10.00./ea
|
|
|
86 mm dia x 0.1 mm ultra-thin diamond blade with flange
|
1 pc
|
$249.00/ea
|
|
|
4" dia x 0.4mm (thickness) x 0.5" arbor edge sintered diamond blade
|
2 pcs
|
|
|
|
Fully sintered diamond blade 4"x 0.33mm x 1/2" arbor
|
1 pcs
|
$138.95/ea
|
|
EC 810-9
|
Blade clamps (90 mm in dia.)
|
1 pair
|
$50/pair
|
|
| EC 810-6
|
Blade clamps (62 mm in dia.)
|
1 pair
|
$30.00/pair
|
|
| EC 810-4
|
Blade clamps (42 mm in dia.)
|
1 pair
|
$20.00/pair
|
|
| EC 812
|
HexaScrew drivers
|
1 set
|
n/a
|
|
| EC 813
|
Water and drain hoses(Ø16mm, Ø20mm)
|
1 set
|
$20.00/set
|
|
| EC 814
|
Operation manual and software
|
1 set
|
n/a
|
|
| EC 815
|
Plastic splash-protection cover
|
1 set
|
$300.00/set
|
|
| EQ-GP-1
|
Φ 220mm Glass Sample Plate
|
1 pc
|
$29.99/pc
|
|
|
A 14"-15" laptop with software installed
|
1 set
|
$799.00/set
|
|
Optional Accessories * ( click thumb-picture to see detail )
* Optional parts are not included in standard package. You have to order separately. Prices are subject to change without notice
|
|
|
|
|
|
|
Sale Price: USD$28,995.00
|
Sale Price: USD$39,995.00
|
|
| | |
|
| | |
|
