Precision Endless Wire Saw with 2" Digital Travel and Two Angle Adjustable Sample Stage - STX-201
|
Click to enlarge
|
Please email to info@mtixtl.com for lead time.
Item Number: STX-201
|

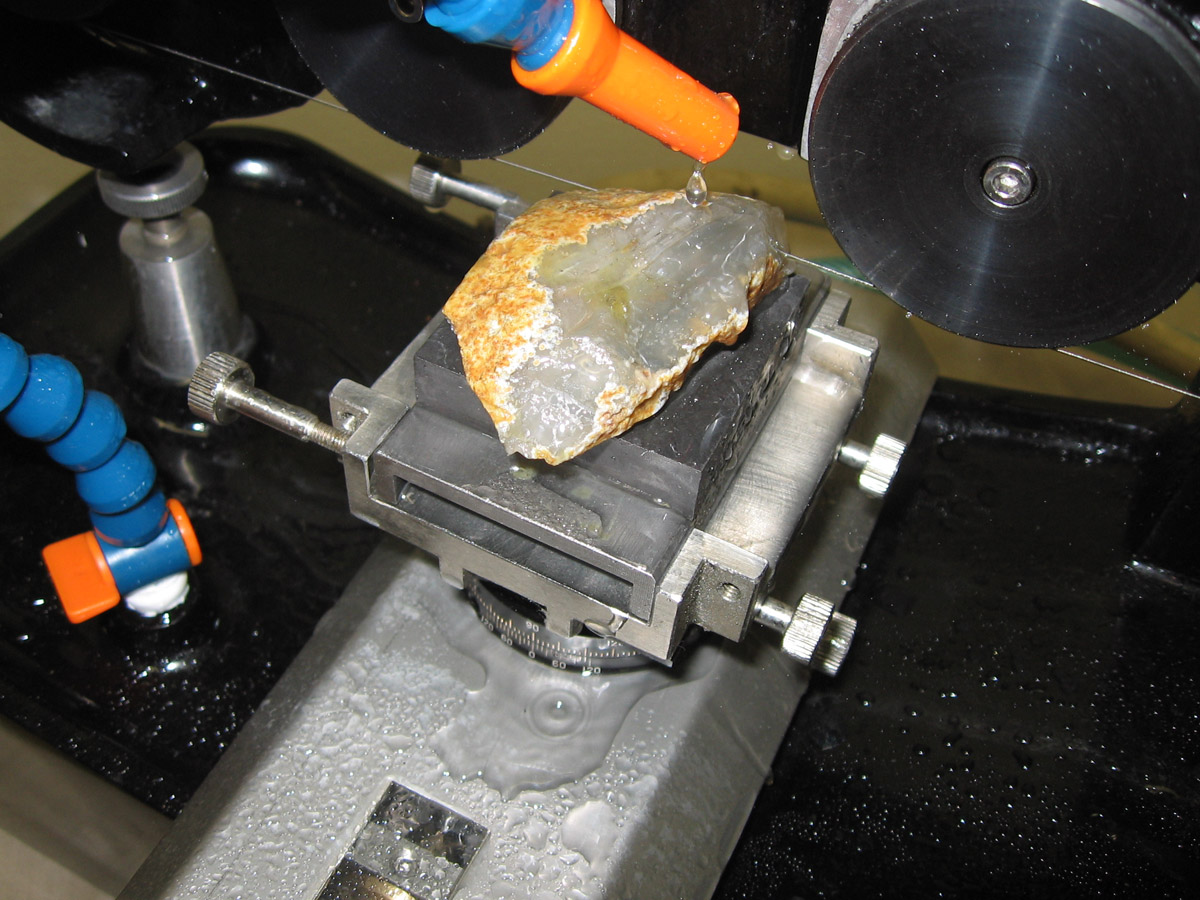

STX-201 ( upgraded from SXJ-2 ) precision wire saw is CE certified and designed to provide a very smooth cutting for almost all kinds of materials, especially for very fragile crystals and substrates such as SrTiO3, YVO4, and GaAs etc. by using either a diamond impregnated or a plain wire blade with abrasive slurry. It is an ideal saw for your needs of cutting valuable delicate and fragile crystals. It is a very helpful for your R&D and laboratory applications
|
Specifications
|
|
Stage traveling distance
|
Max. 50.8 mm or 2" ( New feature ) also, 360 degree horizontal rotating and 30 degree tilt stage included
|
|
Traveling position accuracy
|
|
|
Size of sample stage
|
80 x 51 mm
|
|
Wire traveling speed
|
0-5 mm/sec.
|
|
Cutting thickness
|
Up to 50 mm
|
|
Power Supply
|
AC 110~220 50/60Hz
|
|
Package dimension
|
43" x 23" x 30"
|
|
Shipping Weight
|
120 Lbs
|
|
Warranty
Certificate
|
One year limited, not including cutting wire
CE certified
|
Standard Package List
| Part No
|
Description
|
Quantity
|
Price for replacement
|
|
EQ-STX-2
|
STX-2 Wire Saw (main machine)
|
1 set
|
N/A
|
|
SXJ-2-3
|
2" Rotatable and tilt-able Sample Holder
|
1 pcs
|
$300.00/ea
|
|
|
Cross Vise for Holding Sample
|
1 pcs
|
$129.00/ea
|
|
SXJ-2-5
|
90 degree Sample Mount
|
1pcs
|
$90.00/ea
|
|
|
840 mm long, 0.3mm dia. Diamond Loop Wire
|
1 pcs
|
$40.00/ea
|
|
SXJ-2-6
|
Driving Belt
|
1pcs
|
$10.00/ea
|
|
SXJ-2-7
|
Wax Bulk
|
1pcs
|
$15.00/ea
|
|
SXJ-2-8
|
Graphite Block
|
2 pcs
|
$10.00/ea
|
|
SXJ-2-9
|
Screw Driver
|
1 set
|
N/A
|
| SXJ-2-10
|
Allen hex-wrench 3 & 2.5mm
|
1 set
|
N/A
|
|
SXJ-2-11
|
Fuse
|
1 pc
|
N/A
|
| SXJ-2-12
|
Leading wheel
|
2 pc
|
N/A
|
| SXJ-2-13
|
Tension wheel
|
2 pc
|
N/A
|
| SXJ-2-14
|
Water pipe
|
2 pc
|
N/A
|
|
|
AC Power Cord
|
1 pcs
|
N/A
|
|
|
Operation Manual
|
1 pcs
|
N/A
|
|
EC0-417
|
|
*Optional
|
$64.95/set
|
|
|
Lube Cool 150 Lubricant, 1Oz/bag ( click to order)
|
*Optional
|
$5.00/bag
|
|
SXJO-PW2
|
0.2 mm dia. Plain Steel >Loop Wire ( click to order)
|
*Optional
|
$30.00/ea
|
|
ECO430
|
Heavy Duty Coolant Circulating Tank with Pump 6 liters (strongly suggested) ( click to order)
|
Optional
|
$199.00/ea
|
|
|
|
|
|
|
|
|
Sale Price: USD$19,950.00
|
Sale Price: USD$39,995.00
|
|
| | |
|
