Programmable Compact Spin Coater (500-8000 rpm, 4“ wafer Max.) with vacuum chuck & complete accessories -VTC-100
|
Click to enlarge
|
In stock
Item Number: VTC-100
Personalization
* denotes required field
Rated Voltage for spin coater*
Optional vacuum pump (connection parts included)
|
VTC-100 Compact Spin Coater
VTC-100 compact spin coater is CE certified and designed for easy and quick coating with quality sol-gel for wafers up to 4". The spin speed is variable from 500-8000 rpm with two programmable segments. The complete accessories are included for immediate use.
|
Features
-
Aluminum casting case to keep spinning stable.
-

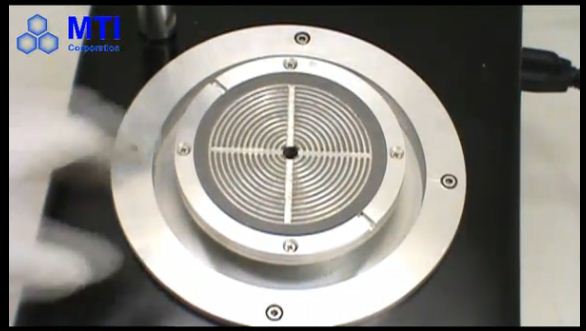

3 sets of vacuum spin chuck in different size (1'', 2'' and 4'')
-
1 piece of adhesive tape (6'' W x 24'' L) is included for customer to cut the proper size for coating irregularly shaped substrate
-
(e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction)
-
Digital control panel with two programmable segments of different spin times and speeds
-
500 - 8000 RPM adjustable spin speed
-
Drainage outlet and vacuum pump connector are on the back panel.
-

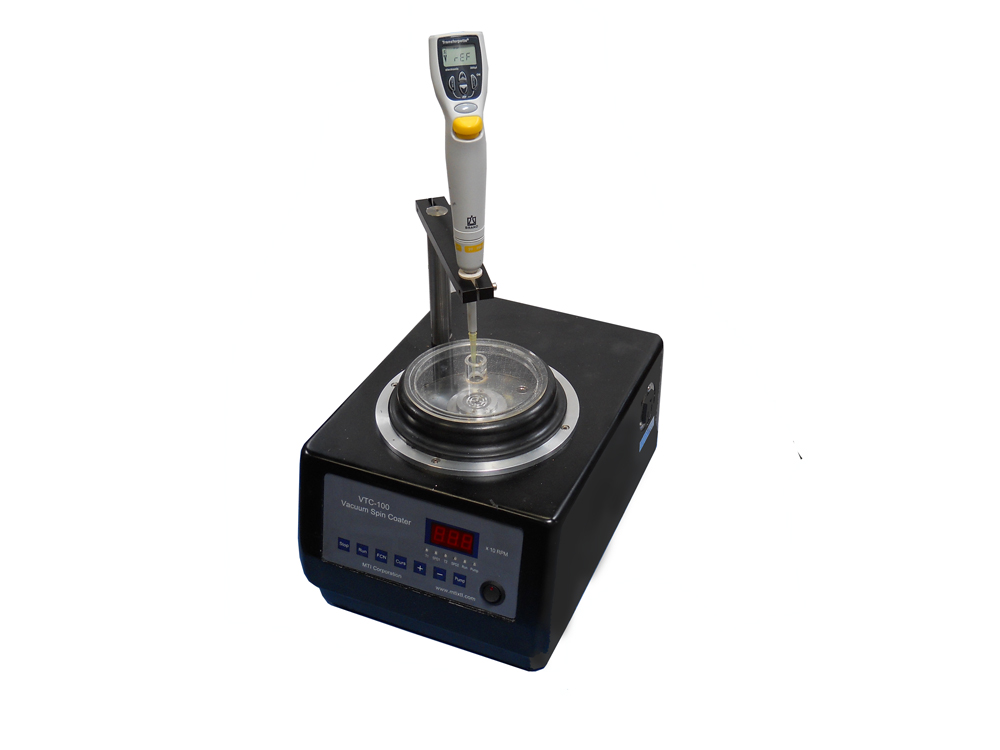

20 mL syringe is used to contain the coating material.
-
The syringe holder height can be adjusted and rotate freely along the support rod.
-
One filter is included as standard accessory. It is used to connect the pump and coater to prevent waste water from flowing into the pump via pipe.
-
Vacuum pump is not included in the standard package please click here to order oilless pump
Specification
- Input Power: AC 110V/220V selectable. (There is a built in power socket on the right side of the VTC-100 spin coater. It is used to supply the power for the vacuum pump. The output voltage of this power supply depends on the input voltage to the spin coater's main circuit. (e.g. if the spin coater is plugged in to the AC 110V power socket, then the built in power socket will supply AC 110V.)
- Motor Power: 150w
- Dimension: 13'' x 10'' x 8.5''
- Net Weight: 33 lbs
- Shipping dimension: 18" x 14" x 15"
-
Shipping weight: 100 lbs
-
Warranty: One year
-
Compliance: CE certified
|
Standard Package
|
1
|
Main Machine
|
1
|
VTC-100 desktop spin coater
|
|
2
|
AC Power Cord
|
1
|
110 ~240v single phase
|
|
3
|
4" vacuum chuck
|
1
|
Installed on the machine
|
|
4
|
2'' vacuum chuck
|
1
|
Included in package
|
|
5
|
1'' vacuum chuck
|
1
|
Included in package
|
|
6
|
Plastic Cover
|
1
|
For operation safety
|
|
7
|
Syringe
|
1
|
For dropping coating solvent on the plate
|
|
8
|
Drain Hose
|
1
|
For disposing waste water
|
|
10
|
Pump hose
|
1000mm
|
For connecting vacuum pump
|
|
11
|
Vacuum filter
|
1
|
Connect to vacuum pipe to keep water from flowing into pump
|
|
(Attention: The use of corrosive coating material is perhibit!)
|
|
