Three-Electrode Split Flat Cell with Pressure Gauge for R&D Battery - 15 mm Diameter Cell - EQ-3ESTC15P

EQ-3ESTC15P is a three-electrode split cell to test anode/cathode with reference electrode in between. It has a mechanical pressure gauge to monitor the air pressure inside chemical reaction chamber and a 1/8'' barb inlet/outlet with needle valve for gas easy in/out.  It is excellent too; to study effect of gas pressure on the electrode  or battery pressure produced during charging and discharging

Features:

• Full stainless steel structure ( SS304)
• 24 mm diameter insert
• Silicon O-ring in between the three plates to ensure good sealing and work up to 250 °C
• Spring load on top to accept various thickness electrode
• Easy to separate cell after test
• Small enough to be put in and out from glove box
• Pressure Range: -0.1Mpa-0.5Mpa (0 Mpa as atmosphere)
• Niddle valve with 1/4" pipe adapter
• Mechanical Pressure Gauge: 1/4NPS fitting or add extra $100 to get digital pressure gauge with 1/4NPT fitting

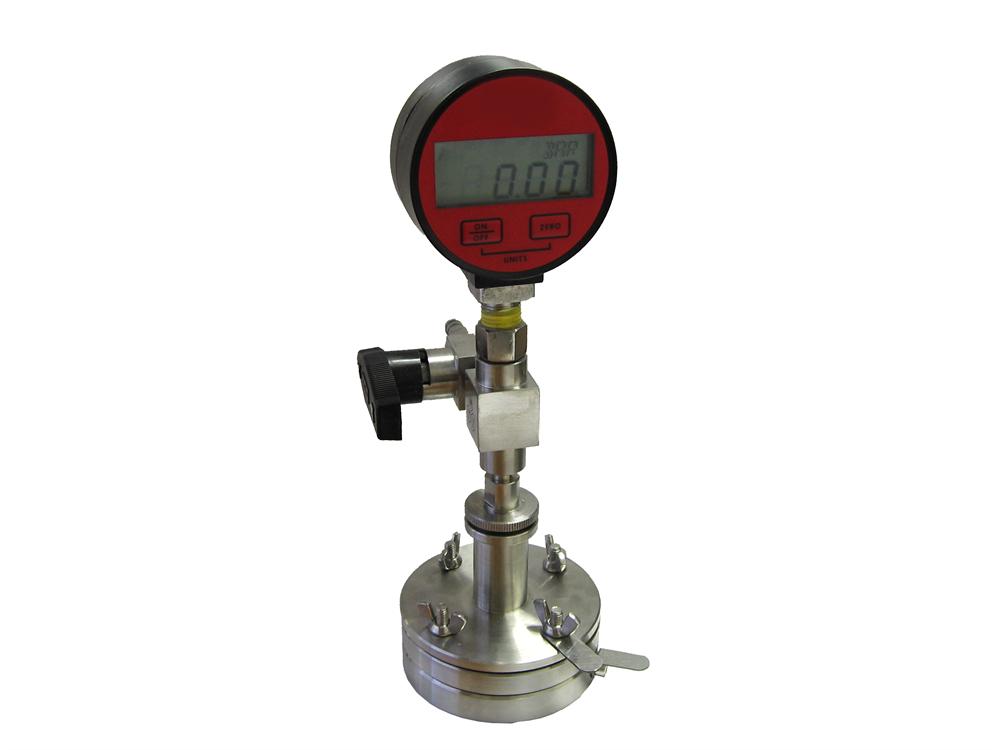

Optional: digital pressure gauge with 1/4NPT fitting

Optional:    you may need the device to cut a O-ring reference electrode ( click thumb to order )
