Three-Electrodes Split Flat Cell for R&D Battery - 15 mm Diameter Cell - EQ-3ESTC15

EQ-3ESTC15 split-able test cell is designed for R&D of rechargeable battery material by testing three electrodes, two sides connecting to electrode like anode and cathode, and middle one to reference which can be used for monitoring voltage variety of the electrode. It can accept 15 mm diameter electrode and 24mm separator and test electrode easy and quick.

Features:

• Full stainless steel structure (SS304)
• 24 mm diameter insert
• Sealed by electrolyte corrosive-proof PTFE O-rings
• Electrolyte corrosive-proof PTFE Guide Sleeve up to 250 ºC
• Spring load on top to accept various thickness electrode
• Easy to separate cell after test
• Small enough to be put in and out from glove box

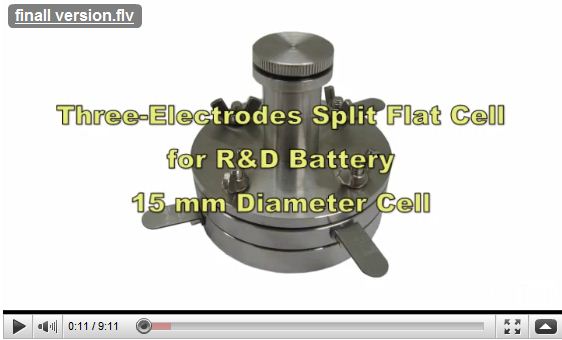

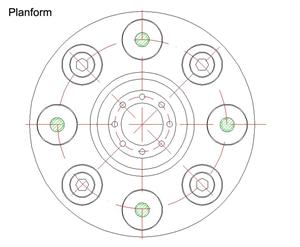

Click the image below for the detailed illustration of this cell and Demo Video

Optional: you may need  the device to cut a O-ring reference electrode
