Larger Automatic Film Coater 12"W x 24"L Glass Bed with Adjustable Doctor Blade - MSK-AFA-II

Click to enlarge
Sale Price: USD$6,195.00
If you are international, please click this.
4-6 wks delivery
Item Number: MSK-AFA-II

Personalization

MSK-AFA-II (upgrade from EQ-AFA-II) is a CE Certified larger automatic coater  and designed to produce consistent thick film with micrometer adjustable applicator . It has a unique driving system to produce smooth coating at all types of materials up to 250mm W x 500mm L. .

Features:

  • Pushing speeds can be varied between 0 - 100 mm /sec

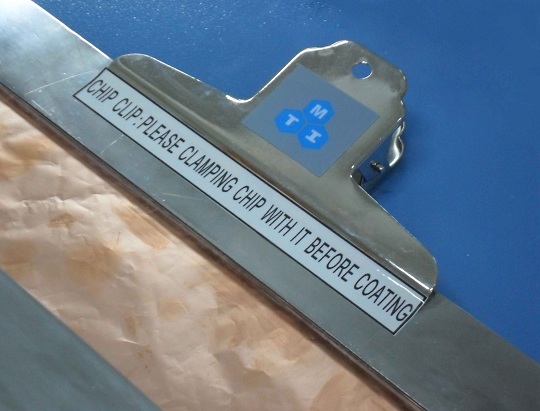

  • 600mm L x 300mm width x 20mm Thick flat  tempered glass plate for support substrate to be coated via clip
  • Built in pushing bar for using for micrometer adjustable applicator  which may be ordered separately .
  • Adjustable position switch allow you set up a stroke from 10 - 600 mm.
  • One  250 mm width micrometer adjustable film applicator is included to make coating upto 250X 500mm Click picture below to see detail )





Specifications
  • Traverse Speed:                   0 - 100mm /sec. variable
  • Speed Accuracy:                 10 mm/sec
  • Stroke Length (Max):            550mm
  • Bed Dimension:                    600mm L x 300mm W x 20mm H , flat tempered glass
  •                                            Optional:  Vacuum chunk is available upon request at extra cost
  • Applicator Driver:                   Included
  • Film Applicator:                     Including 250 mm width Applicator with micrometer adjustable head
  • Max. Coating area:                250mm Width x 550mm Length
  •  Physical Dimensions:           805mm(L)×430mm(W)×223mm(H)
  • Weight Net:                          30 kg
  • Power Requirements:           110 and 220 VAC switchable
  • Power Consumption:             <350 Watts
  • Optional Upgrade:                Vacuum chunk and wider bed upto 400mm are available upon request
  • Compliance:                        CE certified

Operation Manual
