Halogen light Heater (1KW) for Compact RTP Tube Furnace only - EQ-RTP-Halogen-light

Click to enlarge

Sale Price: USD$95.00

In stock

Item Number: EQ-RTP-Halogen-light

Quantity:

The halogen lamp is an incandescent lamp in which a tungsten filament is sealed into a compact transparent

envelope filled with an inert gas and a small amount of a halogen. Such halogen lamp was originally designed

for heating up Compact RTP Tube Furnace with max. heating rate upto 120 ^oC/second.

Aluminum Nitride Ceramic Substrates Properties
Item No.	RTP-Halogen-light
Filament Material	Tungsten

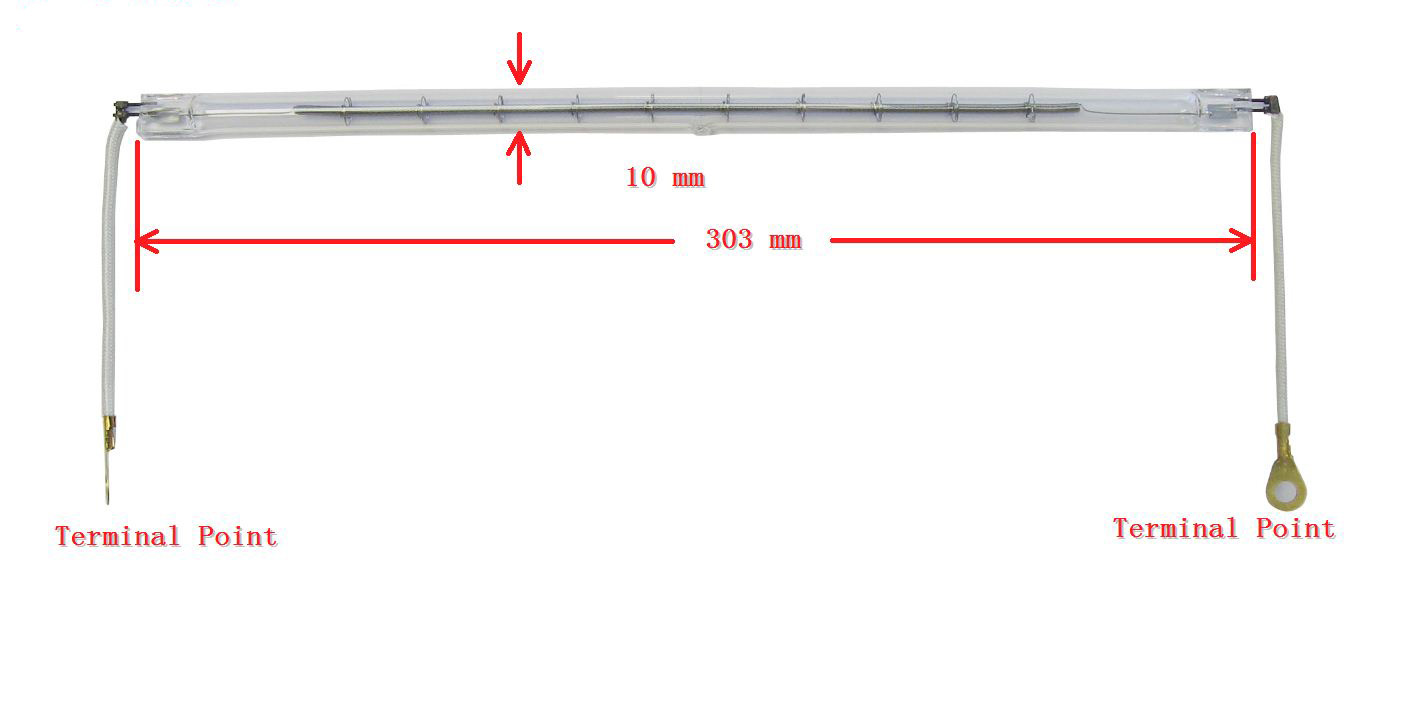

Lamp Size	Length of tungsten filament : 200 mm Total Length: 303 mm Lamp Diameter: 10 mm
Power	1000W
ServiceLife	2000 hours

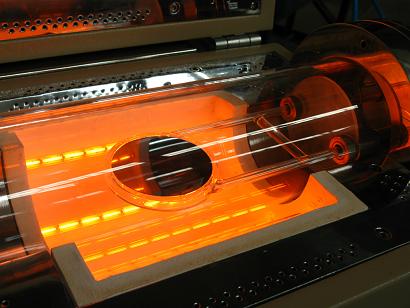

Product Configuration	Compact RTP Furnace is heated by eight halogen lights surrounded with max. 120^oC/second heating rate.
