1250°C Vertical Crucible Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Programmable Controller - VBF-1200X


In stock
Item Number: VBF-1200X
Transported by LTL Freight (Truck)
Description:

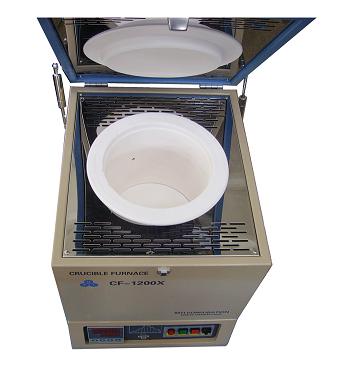

  • Upgrade from CF-1200X The Vertical Crucible Furnace has a large chamber (9.5"d x 8.6"H,  9 liters ) and it is designed for sintering ceramic parts and component in Lab.
  • The crucible furnace has a unique ceramic fiber insulation around , the chamber to provide excellent uniformity and energy efficiency.
  • The heating element is embedded in the insulation for maximum heat transfer to the chamber. Max. temperature can reach 1250°C
SPECIFICATION:

 Furnace Structure & Chamber



  • Double Layer steel structure with air cooling
  • High purity fiber alumina insulation ( made in Japan factory) for max.energy saving
  • Heating chamber size: Ø9.5" x 8.6"H  ,   9 liter capacity
  • Hinged type cover for easy sample loading
  • All accessories are included for immediate use:
    •  One pcs refractory disk, which can be put on bottom of furnace to protect furnace liner from wearing out.
    •  Three pcs refractory supports, which may be put on top of the disk and bottom of the crucible to adjusting crucible height.


 Power

3.5KW Max.

 Voltage

AC 208 ~ 240V Single Phase 50/60Hz

Note: Power cable included , but without plug. Please install a plug by your own or click link below picture to choose a plug according to your country or your lab requrirment

 Max. Temperature

  • Max.  1250 °C  for short time < 1hour
  • Continuous working temperature:   < 1200°C

at room temperature

          at 1000°C

 Max. Heating Rate

40 °C /min

 Temperature controller

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise process
  • Built in protection for over-heated and broken Thermal couple.

Laptop, software & WiFi Control(Optional)

  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note:
    The software is only compatible with MTI’s Yudian Temperature Controller




 Temperature Accuracy

+/- 1 °C

 Heating Element

 1300oC grade Fe-Cr-Al Alloy doped by Mo

 Dimension

510 x 435 x 425mm

 Net Weight

30 Kg

 Shipping package size

 after crating

 45" x28" x 35"

 Shipping weight

260 Lbs

 Warranty

One year limited warranty (Consumable parts are not covered by the warranty )
Certificate
  • CE Certified
  • UL / MET / CSA Certification is available upon request, additional charges will apply
  • Temperature controller is MET and CE Certified

Operation Instructions

Optional
 click here to choose a crucible
