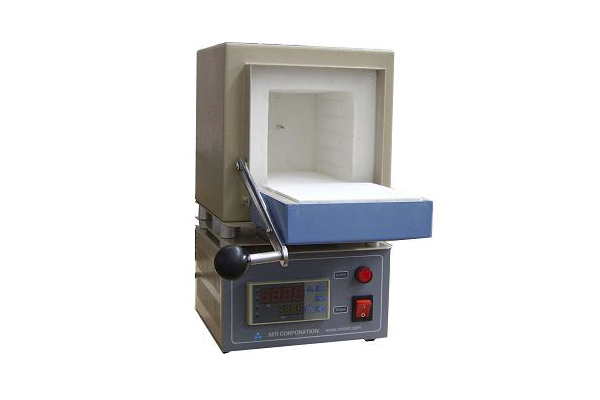

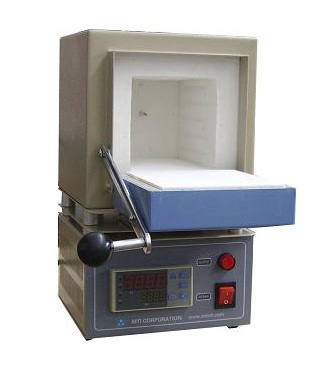

Compact Muffle Furnace (4x4x4", 1.0L) up to 1200 C with 2 Crucibles and 30 Programmable Segments and Gas Ports 110V - EQ-CMF-1100X-110V
|
In stock
Item Number: EQ-CMF-1100X-110V
|
To save energy please don't use big furnace for a small sample !!!
EQ-CMF-1100X-110V is a compact muffle furnace with 4"x4"x4" high purity fibrous alumina chamber, gas inlet and outlet ports and a 30-segment, programmable temperature controller. It is the ideal muffle furnace for material research labs and dental labs to prepare small size sample using temperatures up to 1200oC with maximum energy saving. Also, the compact furnace can be placed into a glove box and sinter the sample in vacuum and a controlled atmosphere.
|
SPECIFICATION
|
|
Furnace construction
|
• High purity fibrous alumina insulation for maximum energy saving.
• Two 8 mm diameter tube connectors can be installed to the gas inlet and outlet ports on the back of furnace by customers.
• Slide down door for loading and take off sample at easy and safe. Power will shut down when door is opened.
• Two Alumina Crucibles: High Purity 40 dia. x 40 H mm Cylindrical with covering lid is included for immediate use.
|
|
Chamber Size
|
4"x4"x4" Click here
|
|
Power
|
700 W Max.
|
|
Voltage
|
AC 110V Single Phase, 50/60 Hz
|
|
Max. Temperature
|
1200 oC (< 1 hour)
|
|
Continuous
Temperature
|
1100 oC
|
|
Max. Heating Rate
|
30 oC /min
|
|
Temperature controller
|
•PID automatic control with 30 segments programmable and auto-tune function.
•Built in protection for over-heated and broken Thermal couple.
•larger digital control pannel (48 x 96 mm) for easy operation.
|
|
Temperature Accuracy
|
+/- 1 oC
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|
Thermal Couple
|
K type
|
|
Dimension
|
200 x 230 x 360 mm
|
|
Net Weight
|
about 8 Kg
|
|
Shipping package size
after crating
|
14" x14" x 18"
|
|
Shipping weight
|
30 lbs
|
|
Warranty
|
one year limited on all electronic parts
|
 |
|
| | |
|
