Compact RTP Tube Furnace with 4" Quartz Tube & Digital Vacuum Gauge up to 1100C and Control Software - EQ-RTP-1000D4
|
In stock
Item Number: EQ-RTP-1000D4
|
EQ-RTP-1000D4 is a compact rapid thermal processing tube furnace with 4" I.D. processing quartz tube and vacuum flange. It is designed for annealing semiconductor wafer or solar cell up to 3" diameter. EQ-RTP-1000D4 is heated by 10KW halogen light with max. 120oC/second heating rate. 50 segment precision temperature controller is built in with +/-1oC. accuracy. RS485 port and control software are included to allow you running furnace and monitoring temperature profile via PC.
|
Specifications:
|
|
Furnace structure
|
Double layer steel case with mullite liner without water cooling or air cooling
|
|
Heating element
|
8 pcs Halogen light tube (D=10 L=300 T =200, mm)
|
|
Heating zone
|
12" length with 4" constant temperature zone within +/-1oC uniformity
|
|
Quart Tube & Sample Holder
|
-
Quart Tube Size: 4.33" O.D x 4.05" I.D x 16.14" Length (110.10mm x 103.05mm x 410mm)
-
3" diameter Sample holder is inserted to sliding flange, which is made of quartz
-
One 3" diameter AlN wafer is placed in the center of holder for annealing sample up to 3" dia.
-
AlN has very high thermal conductivity, which provides the best temperature uniformity in the sample area
-
The sample holder is removable from flange and use the RTP for other purpose
|
|
Vacuum Flange
|
Made of stainless steel with double hi-temp. silicone O-rings, needle valves.
|
|
Water Cooling Jacket
|
-
You must implement cooling water during operation.
-
Please make sure the flow rate of cooling water >= 3L/min, water temp. < 20oC @ pressure > 25 PSI
-
We suggest you using recirculating water chiller as cooling system (please order separately at the related product below) to save water.
-
You can use flowing tap water as cooling source at flowing rate > 8 Liter/minute.
-
Warning: This RTP furnace's Max holding time shall be less than 600 seconds at 1000oC ~ 1100oC, otherwise O-ring may get melting
|
|
Flow-meter
|
One flow meter is installed on the front panel to adjust gas flow from 0 - 160 ml/min
|
|
Vacuum gauge
|
Digital vacuum gauge with a measurement range from 1 mtorr~800 torr is installed with the furnace.
|
|
Vacuum pressure
|
|
|
Temperature control
|
PID automatic control via SCR (Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor.
|
|
Thermal Couple
|
S type
|
|
Programmable Temperature controller
|
|
|
Max. Heating Rate
|
50 oC/sec recommended, and 120oC/sec. for short time ( furnace must preheated at 200oC for 10 20 minutes to get max heating rate )
|
|
Max. Cooling Rate
|
64 oC/min (Under vacuum: 200 mtorr), 117oC/min (Under atmosphere pressure)
|
|
Working Temperature
|
1100oC Max.
|
|
Power Input
|
208-240 AC, 50/60 Hz single phase, 9 KW Max. (> 60A breaker required)
|
|
Dimension
|
760 X 330 X 530 mm (30"W x 13"L x 21" H)
|
|
Net weight
|
45 kg (100 lbs)
|
|
Warranty
|
One year limited (not including halogen light damaged by user)
|
|
Standard Package
|
|
Item No.
|
Description
|
Quantity
|
Price for replacement, USD
|
Quick Links
|
|
EQ-CVM-211
|
Digital Vacuum Gauge Up to 10-4 Torr
|
1
|
USD$395.95
|
|
|

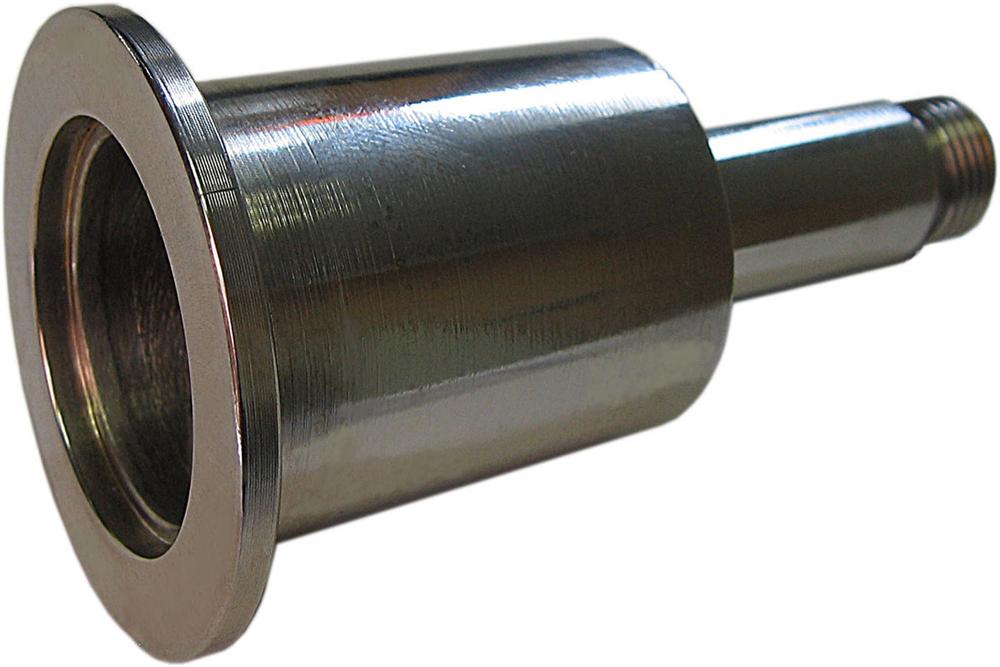

EQ-NKA
|
1/4NPS to KF-D25 quick adapter
|
1
|
USD$29.95
|
|
|
EQ-MTS02
|
Temperature PC Control System
|
1
|
USD$199.95
|
|
|

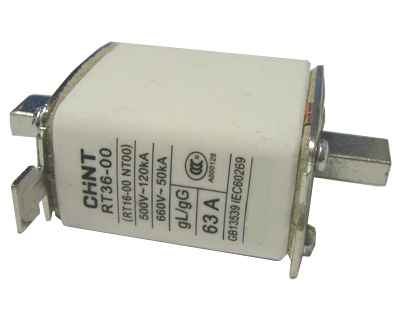

RT36-00
|
Fuse of 63 Amps
|
2
|
USD$45.00/ea.
|
|
|
RT14-20
|
Fuse of 4 Amps,
|
2
|
USD$9.95/ea.
|
|
|
RTP-ACC-01
|
Sample Holder for RTP furnace
|
1
|
USD$150.00
|
|
| AIN-Holder
|
Aluminum Nitride Substrate for RTP Furnace's Sample Holder
|
1
|
USD$49.95
|
|
|
KSL7-05
|
Refractory gloves , Fire-proof upto 900 oC
|
1 pair
|
USD$29.95
|
|
|
EQ-QZTube-RTP
|
Quartz Tube: 4.33" O.D x 4.05" I.D x 15" Length for RTP Tube Furnace - RTP-1000D4
|
1
|
USD$295.00
|
|
|
RTP-ACC-02
|
Quartz heat shield disk
|
4pcs
|
USD$50.00
|
|
|
|
20ft.(6m) polyurethane tube O.D. 12mm I.D. 8mm W.P. 100PSI
|
1
|
N/A
|

|
|
|
High Temperature Silicone Rubber O ring
|
10
|
N/A
|

|
EQ-RTP-Halogen-light
|
Halogen light
|
8
|
$60/ea
|
|
|
|
water hose connector
|
4
|
N/A
|

|
|
A pair of Vacuum flange
|
1
|
N/A
|
|
|
Digital vacuum gauge was installed for immediate use
|
Furnace can be heated to 1100oC at 120 oC/second, and fast cooling by opening cover
|
Sliding flange make an easy way for sample loading. 3" Quartz sample holder.Insert-able thermal-couple for accurate measurement.
|
|

Click to see detail specification
|
user-friendly software
|
Temperature control software is included. Please click picture to enlarge and review interface
|
|

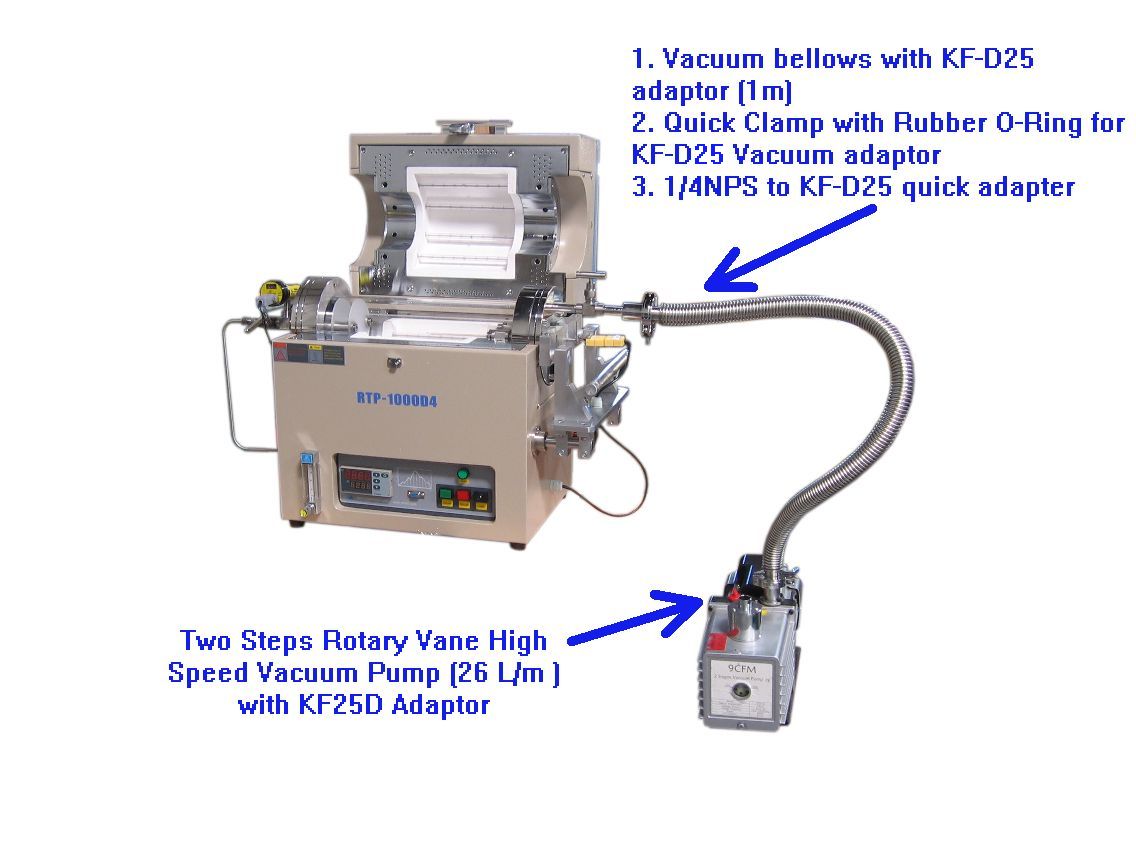

Optional High Vacuum Package
|
|

In order to achieve to achieve better vacuum, we strongly suggest you using KF25 adapter with stain steel vacuum pipe (up to 50 mtorr), Please order upgraded accessories as the follows
|
|
Description
|
Quantity
|
links
|
Unit Price
|
|
Vacuum Pump, Two Steps Rotary Vane High Speed Vacuum Pump(226 L/m) with KF25D Adaptor (110V or 220V)
|
1
|
|
USD$995.00
|
|
KF-D25 High Vacuum Flange for RTP Furnace Only
|
1
|
|
USD$950.00
|
|
Vacuum bellows with KF-D25 adaptor (1m)
|
1
|
|
USD$99.95
|
|
Vacuum Ball Valve with Dual KF-D25 port
|
1
|
|
USD$259.95
|
|
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adapter
|
2
|
|
USD$29.95
|
Quick test instruction
Operation Manual
Product Catalog
|
Sale Price: USD$49,995.95
|
Sale Price: USD$14,995.00
|
|
Sale Price: USD$19,995.00
|
Sale Price: USD$13,399.95
|
|
|
| | |
|
