PECVD Split Tube Furnace (2''-3.14'' OD) with 4 Channels Gas Delivery & Vacuum System (Max.1200C 10E-3 torr) - OTF-1200X-50-4CLV-PE
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-50-4CLV-PE
4 -6 weeks to delivery for QC
|

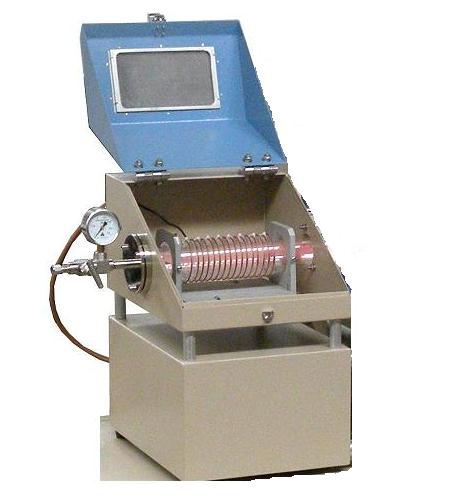

OTF-1200X-50-4CLV-PE is a CE certified compact PE-CVD (Plasma Enhanced Chemical Vapor Deposition) tube furnace system, which consists of 500W RF plasma source, 2" - 3.14" O.D optional split tube furnace, 4 channels precision mass flow meter with gas mixing tank, and high quality mechanical pump.
The PE-CVD furnace is an ideal and affordable tool to deposit thin films or grow nano-wire from a gas state (vapor) to a solid state, and benefits:
Lower temperature processing compared to conventional CVD.
Film stress can be controlled by high/low frequency mixing techniques.
Control over stoichiometry via process conditions.
Offers a wide range of material deposition, including SiOx, SiNx, SiOxNy and Amorphous silicon (a-Si:H) deposition.
Specifications:
|
Split Tube furnace
|
-
1200oC Max. working temperature for < 60 minutes
-
1100oC Max for continuous heating
- 30 segments programmable precision digital temperature controller.
- 440 mm length single heating zone and 150 mm length constant temperate zone
-
High purity quartz tube optional from ( click optional bar to choose )
- One pair of vacuum sealed flange with valves.
-
Input power: 208 – 240V AC input, single phase at max. 4KW
-
|
|
Plasma RF Power supply
|
Output Power: 5 -500W adjustable with ± 1% stability.
RF frequency: 13.56 MHz ±0.005% stability.
Reflection Power: 200W max.
Matching: Automatic
RF Output Port: 50 Ω, N-type, female
Noise: <50 dB.
Cooling: Air cooling.
Power : 208-240VAC, 50/60Hz
Note: This RF power supply can accept 50 - 80 mm Max quartz tube by changing flange
|
|
Vacuum Pump and valve
|
|
Optional Oiless Pump
|
Please order the oiless pump for zero contamination:
|
|
Mass Flow meters
|
- Four precision mass flow meters (0.02% accuracy) with digital display are installed on the bottom case to control gas flow rate automatically.
- MFC 1: Gas flow range from 0~100 sccm
- MFC 2&3: Control range from 0~200 sccm
- MFC 4: Control range from 0~500 sccm
- One gas mixing tank is installed on bottom case with liquid release valve.
- 4 stainless steel needle valves is installed on left side of bottom case to control 4
type gases mixing manually.
- Gas inlet fitting: four 1/4NPS.
- Gas outlet fitting: four 1/4NPS.
|
|
Optional
|
You may choose quart tube of 80 mm diameter at extra cost ( $1200 )
|
|
Overall dimensions
|
- Furnace: 550 x 380 x 520 mm .
- 2 Bottom
Mobile case together: 1200 x 1200 x 1200mm.
- Net weight: 220 Lbs.
- Shipping weight: 350lbs.
|
|
Warranty & Certificate
|
|
Note:
MTI reserves right to modify PECVD design at any time without notice, but promise quality meet and excess the specifications above
|
|
|
Sale Price: USD$10,995.00
|
|
|
|
Sale Price: USD$11,995.00
| |
|
| | |
|
