1250°C Max. Automatic Compact Vacuum Furnace With Oiless Pump for R&D of Dental & Ceramic Materials - OTF-1200X-DT
|
Click to enlarge
|
Product Options
| |
|
OTF-1200X-DT-110V is a CE certified compact bottom loaded vacuum muffle furnace for material research lab and dental lab to prepare small size sample.
Features:
-
Voltage: AC 110V or 220V 50/60Hz (Please select the voltage in the optional bar)
-
Max. working temperature up to 1250°C.
-
Digital temperature control with +/- 2 C accuracy.
-
4.5’’ x 3.5’’ color LCD screen to display temperature profile, heating procedure and vacuum status.
-
Auto-lift tray coordinating with ceramic holder make the process easier.
-
Oil-less vacuum pump is included for immediate use
-
Built in programs in the controller for firing all kinds of commercial dental materials. Also, allow user design own program for research ceramic material with following data
-
Max. working temperature: 1250°C
-
Max. heating rate: 120°C/min.
-
Max. dwell time with vacuum: 60 minutes
-
Max. dwell time without vacuum: 540 minutes.
-
Max. vacuum pressure: 20 torr ( -98Kpa)
For details please see the specification below.
|
SPECIFICATION
|
|
Dimension
|
360mm (L) x 320mm (W) x 600mm (H)
14’’(L) x 12.5’’(W) x 23.6’’(H)
Please click here to see the detail.
|
|
Weight
|
28Kg (not including vacuum pump)
|
|
Max. Operating Temp.
|
1200°C continuous
1250 °C ( for < 60 minutes )
|
|
Heating Rate
|
2-120°C
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|
Working Region
|
-
inside camber size: 100mm dia. X 140mm H
-

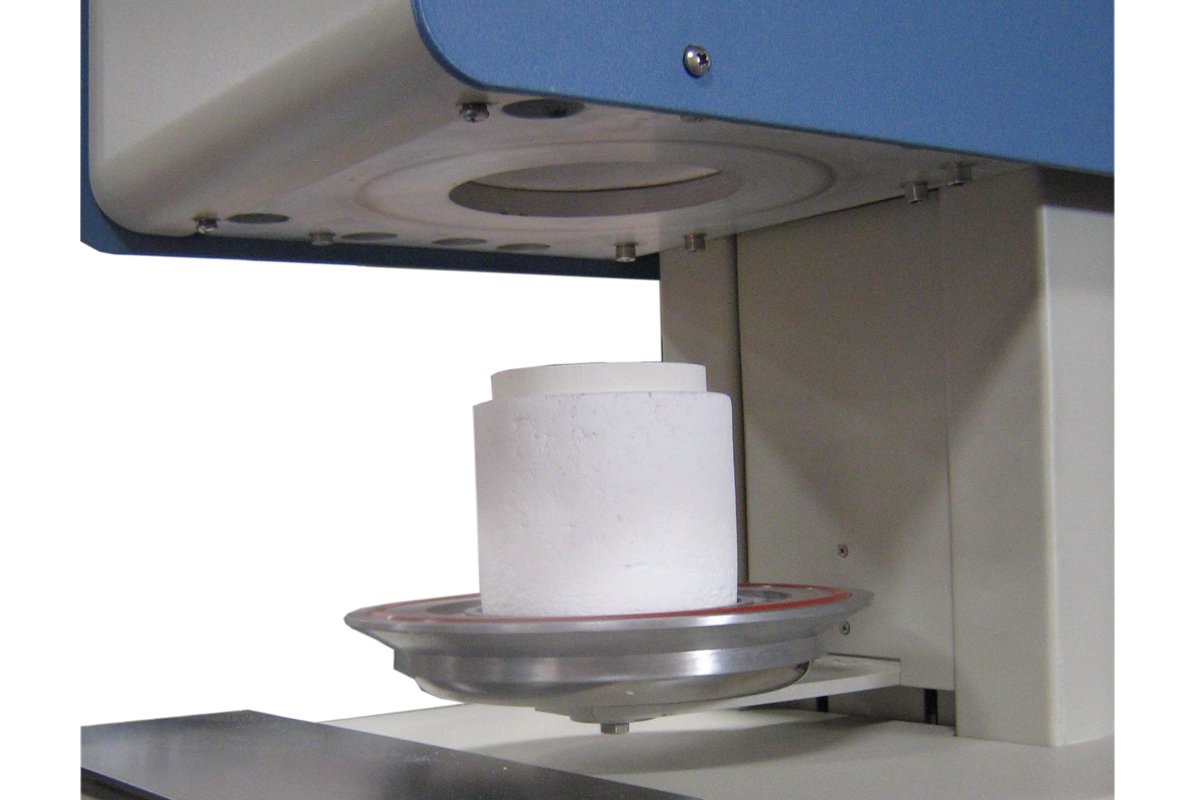

Auto-lift and auto down sample tray.
-

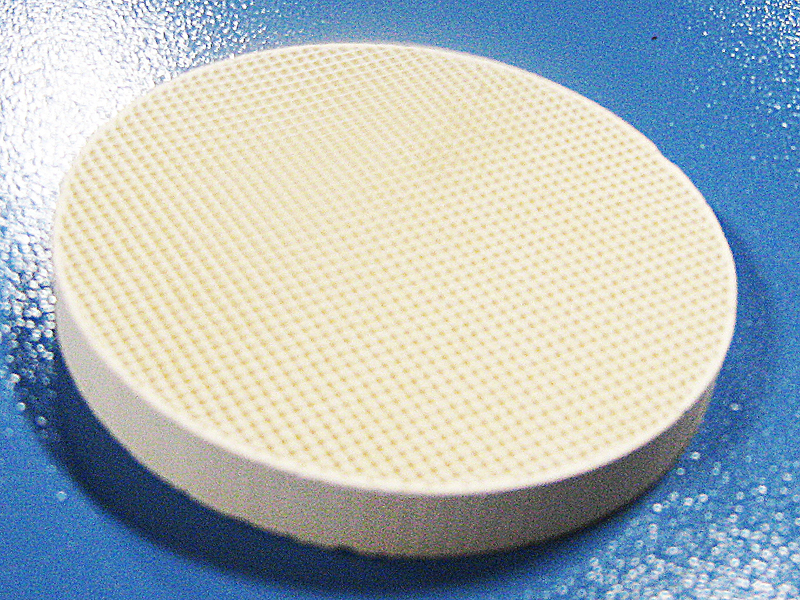

Creamic holder included
-
Creamic block (80mm H) and supporting plate are included
|
|
Power
|
1.6KW, 15A max.
|
|
Voltage
|
AC 110V or 220V 50/60Hz (Please select the voltage in the optional bar)
|
|
Vacuum
|
|

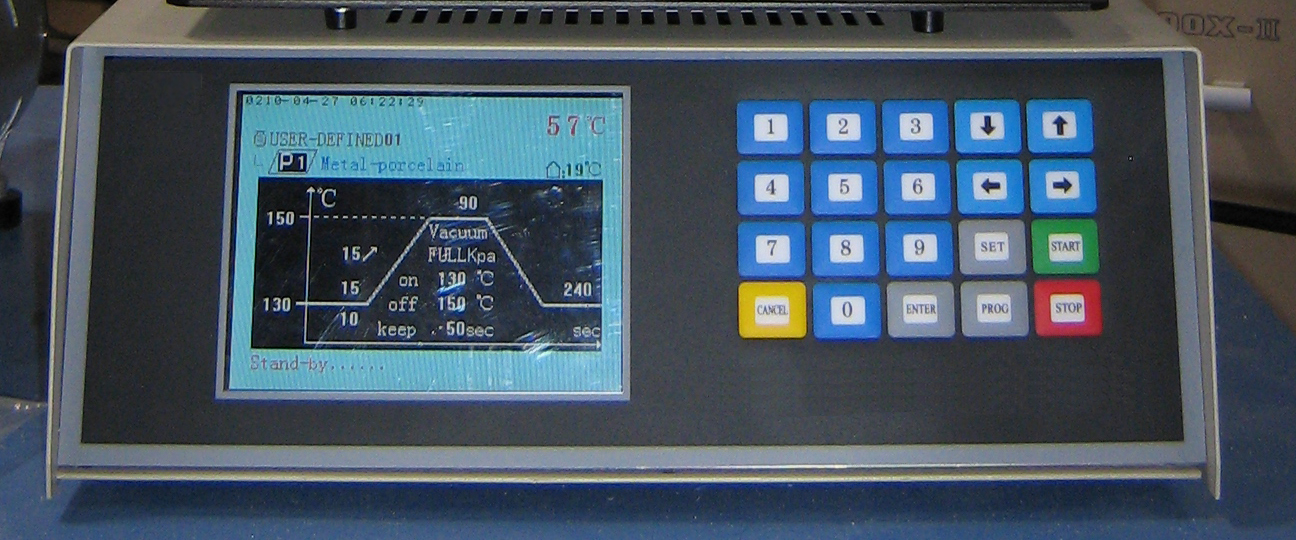

| Temperature controller
|
Design your program on Colar LCD Screen:
Idle, dry, preheat, Ramp up, dwell, Cooling down, 6 segments are programmable
Set and Save your own program
Save and classify your program. Easy to pick up in the next time.
Vacuum:
automatically control the vacuum on/off according to the user-defined value of temperature (vacuum start & stop temperature) and time (vacuum holding time)
|
| Venting System
|
Gas inlet port
Gas inlet port and filter have been installed on the left side of furnace.
|
| Warranty
|
One year limited warranty (Consumable parts are not covered by the warranty, please order the replacement at related products below.)
|
| Certificate
|
CE certified
|
|
