Atomospheric Plasma Jet-Flow system ( Plasma Pen) for surface Treatment
|
Click to enlarge
|
In stock
Item Number: GSL1100X-PJF
Personalization
|

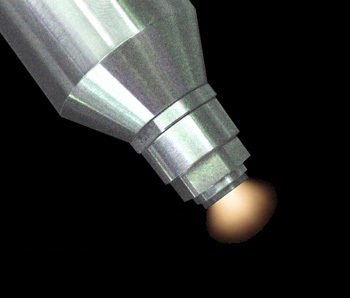

Atmospheric Plasma Jet-Flow system ( Plasma Pen) for surface TreatmentGSL1100X-PJF is a compact Atmospheric Plasma Jet-Flow ( so called Plasma Beam , Plasma Pen) system for surface Treatment, which consist of RF generator, flexible gas delivery pipe and plasma beam head . The plasma jet flow can activate and clean material surface rapidly at low temperature without vacuum, such as single crystal wafer, optical component, plastics etc. It is excellent for treat wafer surface before epitaxial or optical coating to obtain higher quality thin film.
Features:
-
High speed surface treatment with simple and safe operation
-
No vaccum and no chamber required with versatile plasma chemistry
-
Handheld or in-line processing at low cost
-
light weight and compact size
MAIN SPECIFICATIONS
|
Input Power
|
110V - 240VAC, 50/60 Hz, < 1000W
|
|
Output Frequency
|
20-23 kHz
|
|
Plasma Beam head
|
Two plasma Beam heads are included--: round head：10-12mm；retangular head：15-18mm
|
|
Input Gas Pressure and Working Gases
|
|
|
Plasma working Pressure
|
7.- 10 PSI
|
|
Working Environmental
|
- Temperature: < 42°C
- Himunity: : ≤ 40℃RH
- No flammable gas
|
|
Overall dimension
|
380 (W) ×210 (H) ×500 (D) mm
|
|
Net Weight
|
10 kg
|
|
Warranty & Certificate
|
|
|
Operation Manual
|
|
|
|
|
Sale Price: USD$12,695.00
|
|
Sale Price: Call for Price
| | |
|
| | |
|
