3 Targets Plasma Sputtering Coater with Vacuum Pump & Three Targets ( Au,Al, Cu), 2" Max Sample - GSL-1100X-SPC16-3
|
Click to enlarge
|
In stock
Item Number: GSL-1100X-SPC16-3
Personalization
|
GSL1100X-SPC16-3 is CE certified compact plasma sputtering coater with three rotatable target holders. It can coating one sample up to 50 mm diameter with 1- 3 type of metallic materials without breaking down vacuum. One pre-installed gold sputtering target, Vacuum pump, stainless steel bellows with KFD25 adapter & clamps and vapor trap are included for immediate use.
MAIN SPECIFICATIONS
|
Input Power
|
Selectable: 110V OR 208V - 240V, 50/60 Hz, < 2000W ( including pump)
|
|
Specimen chamber:
|
Fused glass tube, 160 mm Dia. x 120mm Height
|
|
Specimen stage
|
-
One 50 mm Dia.sample stage, which can be ratated manually in three positions
-
Max. coating area : 45 mm
|
|
Accessories included (Please click the picture below for details)
|
-
-
Vapor trap prevent back streaming of oil into the vacuum chamber
-
Stainless steel bellows with KFD-25 adapter and clamps
-
High purity gold foil target
-
the system requires a Ar gas tank with pressure regulator which is not included.
|
|
Gas atmosphere
|
One needle valve installed to allow Ar has inlet to achieve better plasma coating
|
|
Target
|
|
|
Overall dimension
|
400mm × 300mm × 400mm（L×W×H）
|
|
Net Weight
|
50 kg
|
|
Warranty & Certificate
|
|
|

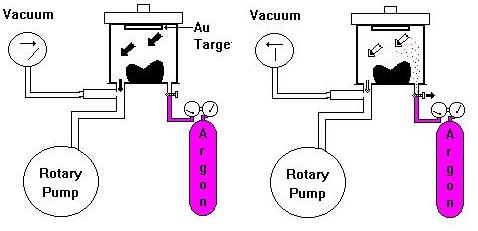

Knowledge of Sputter Coating
|
MTI Corp. shares the most state-of-art sputter coating technology with our customer, please click the picture
below to read the artical - Plasma Sputter Coating.
|
|
|
|
|
|
|
|
