25KW Small Vacuum Induction Melting System with Complete Accessories- Optional 80 or 100mm Quartz Tube, 25KW - EQ-SP-25VIM
|
Click to enlarge
|
In stock
Item Number: EQ-SP-25VIM
|
EQ-SP-25VIMis high power and small vacuum induction heating / melting system with complete accessories, including SP-25A induction heater, quartz tube with flange & valve, graphite crucible& refractory assembling , 4L/m recirculating water chiller, a vacuum pump and a mobile car. It is ideal tool for researching new metallic materials with melting point < 2000oC and sample quantity < 500 g
|
Specification
|
|
|
|
Input Power
|
220 VOLTS (Three PHASE) 50-60 Hz
|
|
OutputPower
|
2 - 25 KW
|
|
Input Current
|
Max. 42 Amp ( 50A breaker required)
|
|
Output
Frequency
|
30-80 KHZ adjustable
|
|
Duty Cycle
|
80%
|
|
AutoHeatingTime
|
1-99 Seconds
|
|
AutodwellTime
|
1-99 Seconds
|
|
AutoCoolingTime
|
1-99 Seconds
|
|
Air Cooling
|
Rear Fan
|
|
Protection
|
- Water pressure & over temperature protected automatically
- Over power output protected automatically
|
|
Induction Coil
|
95D x 85 ID x 50 height (mm) (6 loops ) 1/4" copper tube
|
|
Vacuum Flange & Quartz tube
please click to enlarge
|
-
Stainless steel flange with high temperature silicone o-ring andself-tightenstructure.
-
Two valves and vacuum gauge installed on flange.
-
-
Optional: 100ODx92ODx300Lmm quartz tube is avaliable at extra cost -- Choose from option bar
-
KF25 connector and 1 meter long SS pipe is included for connecting to vacuum pump
|
|

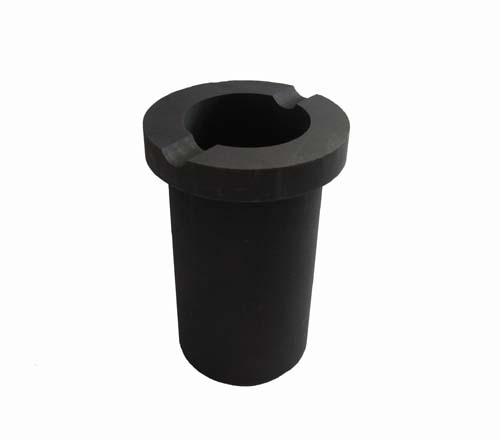

Graphite crucible and refractory assembling
|
|
|
|
Water Chiller
|
|
|
Vacuum Pump
|
|
Heavy Duty Mobile Car
|
- A steel frame shelf cart
-
800mm x 600mm table is comfortable for placing induction heater & Quartz tube with flange.
-
Movable, convenient & save time.
|
|
Dimensions
|
-
Induction Heater: 18.5" L x 12" W x 17" H (470x300x430mm )
-
Water Chiller: 18" L x 8.7" W x 28" H (220 x 460 x 530mm)
-
Heavy Duty Mobile Car: 800 mm (L) x 600 mm (W) x 597 mm ( H)
|
|
Net Weight (Pounds)
|
|
|
Note:
|
-
If over output, heater will not started, please reduce coil cycle number or sample size to keep heater operating under Max power , e.g. 16KW.
-
-
Melting time and temperature are related to material, crucible, refractory inslution etc. if you don'y know if the induction heater can melt your sample, please contact our engineer for consulting. You must let us know your alloy's composition, melting point and quantity to be melt
|
|
