Precision CNC Dicing / Cutting Saw with Accessories & Laptop and Software - SYJ-400
|
Click to enlarge
|
In stock
Item Number: SYJ-400
|

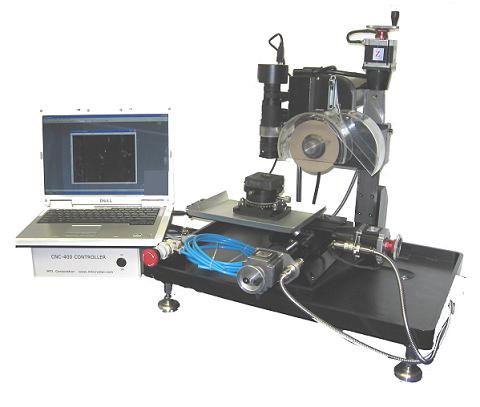

SYJ-400 ( upgraded EC-400 ) is a CE certified precise and cost effective dicing and cutting solution for R&D Lab in Materials and Micro-electronics research field. It is designed for dicing and cutting almost all kinds of materials up to 4" diameter wafer or 8" L x 4" W x 1" H components at low cost. The EC-400 saw can be computerized with position accuracy of 0.01 mm or better. The sample stage with two-angle adjustment allows customers to cut materials at the desired angle with +/- 0.5° tolerance. Laptop with software and USB cable installed and for immediate use.
SPECIFICATIONS
Voltage
|
AC 110V or AC 220V +/- 10% (please select and highlight the working voltage in your requirement.)
|
| Motor
|
Brush-less magneto DC motor (110V) with variable speed up to 3,000 rpm. Power consumption: 180W
|
| Effective Cutting Range
|
3 dimension: X-axis: 8" Y-axis:4" Z-axis:4"
|
| Accuracy
|
0.0025 mm moving resolution and 0.01 mm position accuracy.
|

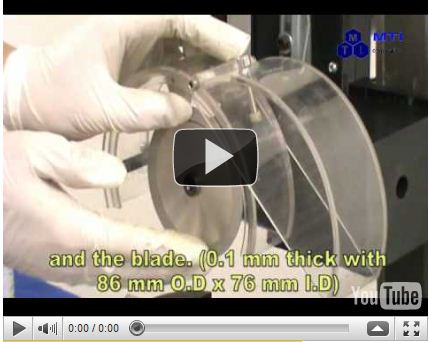

| Cutting Blades Kits
|
One 4" dia x 0.35 mm thick fully sintered diamond blade
Two pairs of flanges with 62 mm dia. ( for dicing ) and 42 mm dia. (for deep cutting)
|
| Control mode
|
Manual control / PC control
|
| Water Cooling
|
Assemblies of water jetting, draining, and splashing protection are included.
|
| Net WT& DIMEN
|
Net Weight: 28.5 kg
580 L x 560 W x 660 H (mm)
|
| Shipping WT & DIMEN
|
Shipping weight : 150 lbs
43"L x 30"W x 34"H (inch)
|
Warranty
|
One year limited --- including all electronic and mechanical parts, but not including damages caused by misuse, such as rusted part from inadequate storage and broken parts by the user.
|
| Certification
|
 CE certified
|
|
|
Standard Accessories:
| Part No
|
Description
|
Quantity
|
Price for replacement, USD
|
|
| EC 401
|
Cross mount vise
|
1 pcs
|
129.00/ea
|
|
| EC 403
|
Controller with connecting cables
|
1 set
|
850.00/set
|
|
| EC 404
|
Mechanical chuck
|
1 pcs
|
150.00/ea
|
|
| EC 405
|
Water splash guard for covering 4" blade
|
1 pcs
|
100.00/ea
|
|
| EC 406
|
Aluminum plate
|
2 pcs
|
10.00/ea
|
|
| EC 407
|
Wax for gluing samples
|
2 pcs
|
5.00/ea
|
|
| EC 408
|
Graphite plate for holding samples
|
2 pcs
|
10.00./ea
|
|
| EC 409
|
Fully sintered diamond blade 4"x 0.3mm x 1/2" arbor
|
1 pcs
|
138.95/ea
|
|
| EC 410-6
|
Blade clamps (62 mm in dia.)
|
1 pair
|
30.00/pair
|
|
| EC 410-4
|
Blade clamps (42 mm in dia.)
|
1 pair
|
20.00/pair
|
|
| EC 411
|
4" Steel plate for holding samples
|
1 pcs
|
50.00/ea
|
|
| EC 412
|
Screw drivers
|
1 set
|
n/a
|
|
| EC 413
|
Water and drain hoses
|
1 set
|
20.00/set
|
|
| EC 414
|
Operation manual and software
|
1 set
|
n/a
|
|
| EC300
|
Plastic splash-protection cover
|
1 set
|
200.00/set
|
|
| EC550
|
A 14"-15" laptop with software installed
|
1 set
|
799.00/set
|
|
Optional Accessories * ( click thumb-picture to see detail )
* Optional parts are not included in standard package. You have to order separately. Prices are subject to change without notice
Smart Tip and Options
- Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as coolant during cutting.
-
You may select our LubeCool-150 lubricant as coolant, and build up a small circulation system with 6L circulating coolant tank , which will make the diamond blade cut more efficiently and prevent corrosion. Also, you can use W10-30 motor oil as coolant, which is available at any Auto store.
- Always clean machine, especially the lead screw using WD-40 lubricant (1 can included) after each use. Make sure the X, Y and Z axes can move freely without blocking and rusting.
- For dicing Si, Ge, GaAs and quartz, LiNbO3 wafers, you may consider to use 100 microns ultra-thin diamond blade because of less kerfs.
- In order to ensure accurate alignment when cutting wafer, you should choose 25x stereo microscope with support frame (P/N ECO 421).
- Vacuum chuck and alignment microscope for easy wafer dicing are available as optional parts.
- For mounting wafer easily and quickly, you may also choose a vacuum chuck (P/N ECO402) and adhesive film (P/N ECO 419).
- Add MT45 microscope set and digital camera head to monitor dicing sample accurately on computer screen (please click picture below to see what looks like)
|
|
| | |
|
