Vertical High Temperature Vacuum Tube Furnace (1700 C, 2.83"ID) - GSL-1700X-80VT

Furnace structure

• Double layer steel casing.
• High purity fibrous alumina insulation
• Alumina processing tube, Vacuum & gas tighten flange,  valves vacuum gauge, thermal blocks and included for immediate use

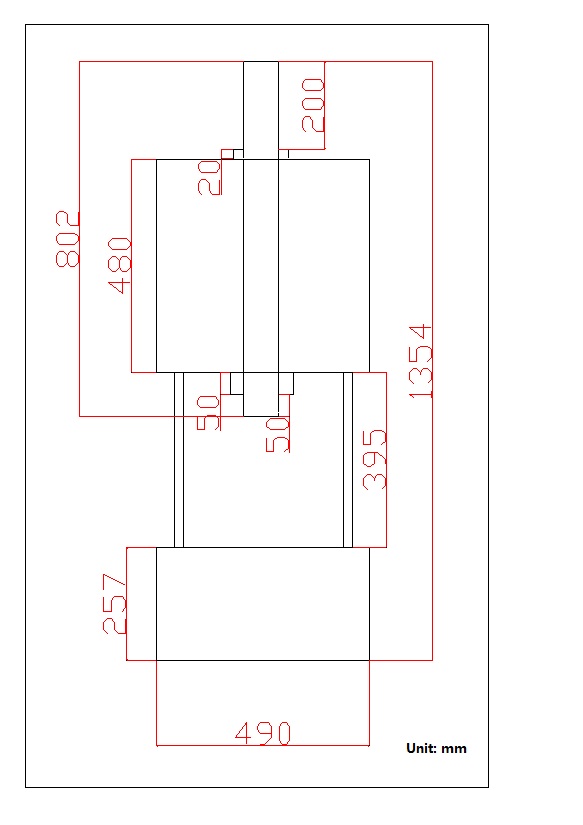

• Click drawing below to see dimension

Tube Materials:

99.8% High purity Al₂O₃ Ceramic

Tube Size:

ID: 72mm X OD: 80 mm  x  Length 800 mm

• Two stainless steel flanges with vacuum gauge and valves included
• There is a Hook ring is welded inside of Top Flange for hanging sample or crucible by wire
• You may order optional 2" flange with 1/4" tube sealed insert to put in a thermal couple or rod

• In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click underline to order.
• For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting, please click underline to order.

Refractory lining

1800 grade fiber alumina cast in vacuum

Heating element

4 pcs U shape 1800 grade MoSi2,

Normal Working Temperature:

800 -1600 ^oC (3002  ^oF)

Max. Working Temperature:  1700 ^oC (3092  ^oF) for < 1 hours

Temperature Controller

·     PID automatic control via SCR (Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor  with 30 steps programmable

·     Please click here to learn why SCR is more accurate than SSC (Solid state relay)

Max. Heating / Cooling Rate:

 5 ^oC / min above 1200 ^oC and 10 ^oC/min below 1200^oC

 Heating Zone

 150

ConstantTemperature  Zone

50 mm  (2")  Temperature Accuracy:   +/- 2 ^oC

Input:

 Single Phase, 220V AC,  50/60 Hz

Output:

 Max. 4 KW

Dimension:

Net  Weight:

  150 kg (330 lbs)

Dimension of shipment:

  47" x 45" x 45"(1200L x 1150W x 1500Hmm)

Weight of shipment:

 380 Lb (175kg)

Certificate & Warranty

•  CE certified
• One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)

Warning

MoSi2 heating element  is used in the high temperature under oxidizing atmosphere. It will form the SiO2  film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400 ^oC and 700 ^oC for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.
