1600ºC Bench-Top Vacuum Tube Furnace (60mm OD) with Complete Accessories - GSL-1600X-S60
|
Click to enlarge
|
In stock
Item Number: GSL-1600X-S60
Personalization
|
GSL-1600X-S60 tube furnace is a CE certified compact furnace with 60 mm dia alumina processing tub & vacuum flangee, 30 segments programmable temperature controller at a working temperature up to 1600°C. It can be widely used for material and chemical lab to sinter all types of new materials samples under vacuum or other gas conditions.
|
Specification
|
| Furnace structure
|
- Double layer steel casing with air cooling.
- Two cooling fan inside to keep case temperature < 60oC.
-
High purity Alumina refractory chamber with max energy saving.
-
Alumina tube, vacuum flange, gauge & valve are included
-

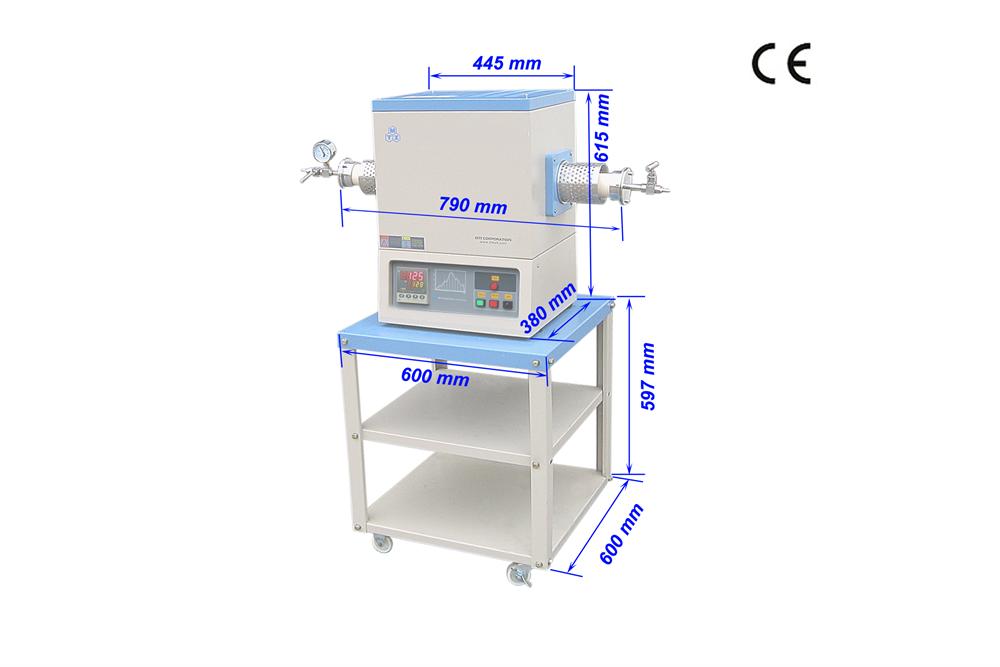

Compact design ( click picture below to see dimension)
-
Such compact space-saving furnace can be placed on the 600mm x 600mm mobile cart (available in the optional parts list below)
|
| Processing tube
|
- Premier Grade alumina tube, Purity > 99.5%
- 54 mm (I.D) x 60 mm (O.D) x 790 mm length.
|
| Seal Flanges
|
|
| Heating Elements
|
|
| Max. Working Temperature
|
|
| Temperature Controller
|
|
| Max. Heating / cooling Rate:
|
10ºC / min
|
| Heating Zone
|
300 mm (12")
|
| Constant Temperature Zone
|
75 mm (3") within ± 2°
|
| Temperature Accuracy:
|
+/- 1ºC
|
| Input:
|
Single Phase, 220V AC, 50/60 Hz (30A breaker required)
|
| Output:
|
Max. 3KW (30A fuse required)
|
Power cable & plug
|
|
| Dimension:
|
445 L x 380 W x 615 H mm
|
| Net Weight:
|
100Kg
|
| Dimension of shipment:
|
38"x 38"x 38"
|
| Weight of shipment:
|
250 lbs
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
| Certification
|
 CE certified
|
| Warning
|
|
|
Standard Package
|
|
Part NO.
|
Description
|
Quantity
|
Click to order extra
|
|
GSL68-01
|
Super 1700 grade MoSi2 Heating Elements (30 x 270mm) 4 pcs in furnace
|
4
|
|
|
GSL68-02
|
Flanges (include one pair of flanges with 1/4 rubber hose fittings and vacuum gauge. 4 pcs of vacuum 0-Rings are included.)
|
1 set
|
|
|
GSL68-03
|
Thermal couple
|
1
|
|
|
GSL68-04
|
99.8%High purity Al2O3 Ceramic tube
|
1
|
|
|
GSL68-05
|
Tube Blocks (52 mm Dia.)
|
4
|
|
|
GSL68-07
|
32A fuse
|
1
|
|
|
GSL68-08
|
4A fuse
|
1
|
|
|
GSL68-09
|
furnace handle hook
|
1
|
|
|
Optional Parts
|
|
Part No.
|
Description
|
Quick Link
|
|
GSL68-21
|
|
|
|
GSL68-22
|
Compact Direct Read Flow Meter
|
|
|
GSL68-23
|
Compact Digital Vacuum Gauge & Controller with Power Supply (Up to 10-4 Torr)
|
|
|
GSL68-24
|
Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
|
|
|
GSL68-25
|
Gas Control System for Tube Furnaces by Three Channel Float Flow meters and Valves
|
|
|
GSL68-26
|
Temperature Control System for controlling MTI's furnace by using computer
|
|
|
GSL68-27
|
SS Needle Valve Assembling with 1/4 NPF Conector for Vacuum and Gas Atmosphere
|
|
|
GSL68-28
|
High Vacuum System Up to 10-5 Torr for Furnace MT-HVS
|
|
|
GSL68-29
|
Compact Turbo-molecular Pump
|
|
|
|
|
|
