1800°C Compact Vacuum Tube Furnace (60mm OD) with Kanthal Heating Element - GSL-1800X-S60
|
Click to enlarge
|
In stock
Item Number: GSL-1800X-S60
Personalization
|
GSL-1800X-S60 is a CE certified compact tube furnace using high quality ZrO2 Liner and Kanthal Super-1900 MoSi2 heating elements, and can be heated upto 1800oC. Vacuum sealed flange with two valves & vacuum gauge, and high purity alumina tube (60mmO.Dx 610 mm L) are included for immediate use. The temperature of GSL-1800S-60 tubing furnace is controlled by precision controller with accuracy +/-1 oC and 30 segments programmable. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition.
Specifications:
|
Furnace structure
|
-
Double layer steel casing with Two cooling fan inside to keep case temperature < 55oC.
-
High purity Alumina refractory chamber with 10mm thick 2500oC grade YSZ ceramic liner.
-
Super-energy saving: only consumes <1600W power when kept at 1800°C
|
|
Tube Materials:
|
- High purity Alumina Tubemade in USA
|
|
Processing tube
|
- ID: 54mm x OD: 60 mm x 790 mm length.
- Two pairs of SS tune support is installed to avoid tube bending under high temperature (click picture below to see details).
|
|
Seal Flanges & Upgrade
|
-

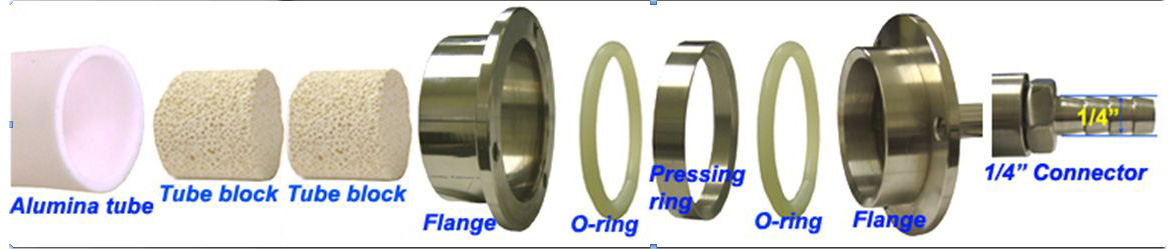

One pair sealing flange with double silicone high temperature O-ring is included.
-

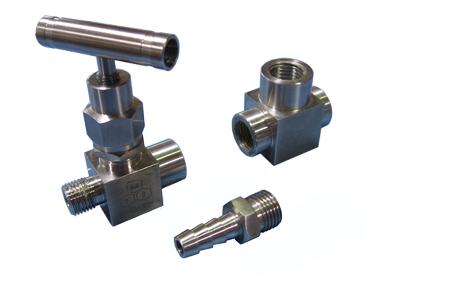

Two SS needle valves and one dial vacuum gauge are installed with flange for immediate use.
-
Vacuum pressure can reach 50 mTorr by quality mechanical vacuum pump and 10-5 mtorr by molecular pump. Please click picture above to see flange assembling details.
|
| Fitting Ports
|
-
In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click underline to order.
-
For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting, please click underline to order.
|
|
Heating Elements
|
|
|
Max. Working Temperature:
|
-
1750oC continuous
-
1800 oC < 4 hours
|
|
Temperature Controller:
|
|
|
Max. Heating / cooling Rate:
|
5oC / min ( T< 1600oC ); 2oC / min ( T>1600oC )
|
|
Heating Zone
|
12"
|
|
Constant Temperature Zone
|
3" ( +/- 1 oC )
|
|
Temperature Accuracy:
|
+/- 1 oC
|
|
Input:
|
Single Phase, 208V~240V AC, 50/60 Hz (30A breaker required)
|
|
Output:
|
Max. 2.5 KW
|
Power Cable & Plug
|
|
|
Dimension:
|
590L x 490W ×790H, mm
|
|
Net Weight:
|
150Kg
|
|
Dimension of shipment:
|
47"x45"x45"(1200Lx1150Wx1150Hmm)
|
|
Weight of shipment:
|
350 lbs
|
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
Certificate
|
 CE certified
|
|
Warning
|
|
Standard Package with the Furnace
|
Description
|
Quantity
|
Price for replaced
|
|
|
|
4 pcs
|
US$895.00/ea
|
|
|
Vacuum Sealing and Connecting Flanges with 2 Pairs of High Temperature Vacuum Gasket
|
1 sets
|
US$595.00/set
|
|
|
B type
|
1 set
|
US$190.00/set
|
|
|
Alumina tube Tube ( 60OD x 54ID x 790L, mm )
|
1 pcs
|
US$699./ea (OD:50mm)
|
|
|
Foam Al2O3 Tube Block
|
4 pcs
|
US$50.00/ea
|
|
|
Optional Parts
|
|
Part No.
|
Description
|
Quick Link
|
|
EQ-KF-suite
|
KF-D25 series Vacuum Suite(vacuum pump, vacuum ball valve, vacuum bellows, quick clamps, KF adapter) Also you may buy individually.
|
|
| EQ-MTS02
|
Temperature Control System for controlling MTI's furnace by using computer
|
|
|
EQ-CVM-211
|
Compact Digital Vacuum Gauge & Controller with Power Supply (Up to 10-4 Torr)
|
|
|
EQ-FM-Cart
|
Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
|
|
|
|

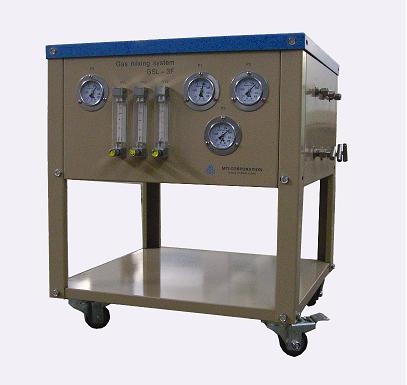

Gas mix station (Float flow meter / Mass flow meter) (2, 3, 4channels selectable)
|
|
|
Vacuum flange fittings
|
|
|
|
High vacuum station (Mechanical pump + turbo molecular pump.)
|
|
|
|
Compact Flow Meter (float flow meter / mass flow meter)
|
|
|
Ceramic Boat/Crucible
|
|
 Operation Manual |
|
|
|
|
|
|
