KF-25 series Vacuum Suite (Vacuum pump, Exhaust Filter, Clamp, Bellows and Valve) - EQ-KF-suite
|
Click to enlarge
|
In stock
Item Number: EQ-KF-suite
Personalization
* denotes required field
Select the working voltage for your pump*
|
Features:
-
Can be installed to all kinds of flanges sold by MTI.
-
Vacuum ball valve and bellows will provide higher performance of vacuum than original rubber hose.
-
KF-25 quick clamps implement easier and more stable connection.
-
KF-25 Vacuum Suite includes: Please click the link picture to review the specifications
|
Part No.
|
Product Name
|
Quantity
|
links
|
|
EQ-2TW4C-220V-filter
|
Vacuum Pump, Two Steps Rotary Vane Vacuum Pump (226 L/m)
with exhaust filter and KF25D Adaptor
|
1
|
|
|
EQ-NPS-KF25-S
|
1/4NPS to KF-D25 quick adapter
|
1
|
|
|
EQ-KF-Pipe-D25
|
Vacuum bellows with KF-D25 adaptor (1m)
|
1
|
|
|
EQ-KF-Valve-D25
|
Vacuum Ball Valve with Dual KF-D25 Adaptor
|
1
|
|
|
EQ-KF-Clamp-D25
|
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adaptor
|
3
|
|
Installation procedure
1. Remove one 1/4 barbed hose fitting on the flange.
2. Install the 1/4 NPS to KF-D25 quick adapter.
3. Install the other parts refer to the picture bellow.

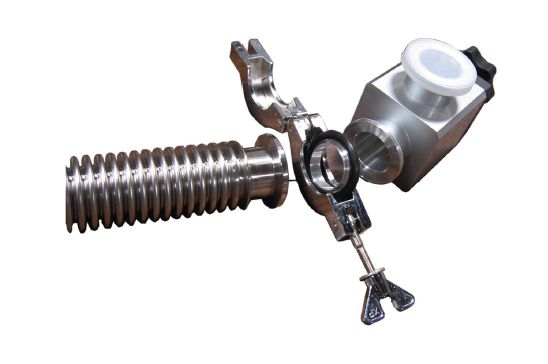

How to 1/4 NPS to KF-D25 quick adapter How to use quick clamps. (click on picture to enlarge)
to MTI Standard Flange Set
4.Finally connect the pump.
 (click on picture to enlarge)
Attention: This pump is NOT
suitable for continuous operation for more than an hour. For
application that needs longer pumping period, please select heavy duty
rotary vane vacuum pump EQ-YTP-550.
|
|
| | |
|
