Box Furnace (12x8x5", 7.2 liter, 1100°C max.) with 30 Segments Digital Controller and Vent Port / Window (208-240VAC) - KSL-1100X

Click to enlarge
Sale Price: USD$2,850.00
If you are international, please click this.
In stock
Item Number: KSL-1100X

Personalization

* denotes required field

Gas Inlet kit*
Optional kits
Specifications
Structure

  • Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient high purity alumina fiber ceramic insulation.
  • Three sides resistance wire coil for fast and uniform heating.Heavy duty double layer structure with cooling fan. Lower temperature outside case.
  • K type thermocouple installed for immediate use.
  • Vent port installed on top for gas flow. (gas outlet)
  • 0.5" diameter observation window made of quartz glass allows the user to see insider chamber during heating operation.
  • (Optional gas filling port can be added via the window -- see below picture)



Gas outlet port         Double layer structure    Furnace structure
Chamber Dimensions
12" D x 8" W x 5H" (30 x 20 x 12 cm)   Click picture below to see details
438 cubic inch , 7.2 Liter

Volts 208 -240V  single phase 50/60 Hz
Watts 3500 W
Operating Temp Range
  • 100-1100 °C
  • 1100C for continuously heating
Stability at 1000 °C +/- 0.5 °C
Uniformity at 1000 °C +/- 2.0 °C
Temperature Control

  • PID automatic control via SCR (Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor with 30 steps programmable.
  • Please click here to learn why SCR is more accurate than SSC (Solid state relay)
  • Built-in over-temperature alarm and protection allows operation without attendant
  • Temperature control unit can be separated from furnace, and make moving at easy. Please click the pic at left to enlarge and see detail
  •  Note: To achieve fully temperature computerization please order a set of MTS-02 control module. If you order the control module with the furnace we will install and test it before we ship out the product. We recommend you order computer (laptop) from us. More information please click here.
Ramp up rate Max. 50°C/ min.
Shipping Weight 160 Lbs ( shipping by pallet )
Overall Dimensions D x H x W 25" x 21" x 27"
Warranty One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)
Items included
  • a built-in 30-segment temperature controller
  • a K type thermocouple
  • an observation window in the furnace door
  • a pair of crucible clip
Applications
  • Gravimetric analysis
  • Sintering
  • Quantitative analysis
  • Heat treating
  • Glass preparation

Optional


  The furnace can be operated by PC from remote location. Please order Software & PC module

be added as gas in-let port. please click underline to order

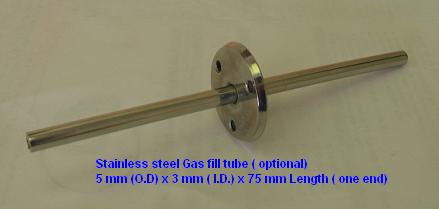

 Replace window by optional tube,

 you may replace the window by install optional gas inlet port in the front of door
