SYJ-30 ( originally  EQ-MT-200 )  is a CE certified heavy duty bench top wet abrasive cut-off saw. It is designed to cut metallographic samples faster and safer at an affordable price. The 10" SiC or diamond cutting blade is used for cutting all kinds of materials with a maximum sample size of 30 mm x 30 mm. A coolant system is built in to avoid sample overheating and water splashing during cutting.

Product Specifications:

• Motor: AC Motor with 1.1 KW.
• Input Power: 220V AC single phase.
• Motor Speed: 2800 RPM.
• Cutting Blade: Two 10" OD x 1.25" ( I.D) x 2 mm (Thick) SiC cutting blade included. (to cut ceramic sample, you will need the 10" x 1.25"I.D diamond blade found below in related products)
• Max. Cutting Section: 30 mm x 30 mm.
• Mount Vise: T clamp vise is included for quick tightening or release.
• Driving the Cut: Manually push up. It is safer and faster than to push down along the cut-off saw.
• Coolant system: Tap water, inlet flow is adjustable at the front panel, and outlet flow is adjustable at the bottom of machine.
• Machine Dimension:  650 x 450 x  400 mm
• Net Weight:              60Kg ( 132 Lb)
• Shipping dimension: 45" x 35" x 30"
• Shipping weight: 160lbs
• One Years limited warranty, not including rusted parts due to inadequate storage conditions.
• CE certified

Cautions & Tips:

• Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as coolant during cutting. You may select our LubeCool-150 lubricant as coolant, and build up a small circulation system with an immersion pump (ECO 417) , which will make diamond blade cut more efficient and keep the machine from corrosion.  Also, you can use W10-30 motor oil as coolant, which is available at any Auto store.
• Always clean machine, especially the lead screw using W40 lubricant after each use.

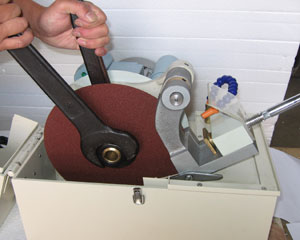

How to change cutting blade

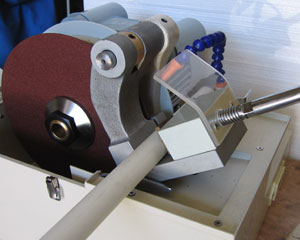

How to mount sample

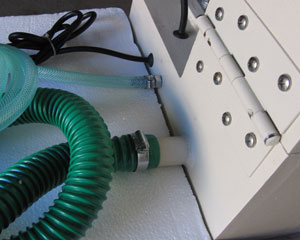

Water inlet & drain pipe

 Operational Instruction       About shipping / handling
