Multi-Position Tube Furnace 1100C ( 1- 2" Dia) with 30 Segments Programmable Digital Controller, 110V - GSL-1100X-110V

Click to enlarge
Sale Price: USD$1,995.00
If you are international, please click this.
In stock
Item Number: GSL-1100X-110V

Product Description

  • Working temperature: RT - 1000oC continuous and 1100oC peak for < 1 hour
  • 30 segments programmable digital temperature controller with PID, auto-tune and over-temperature protection
  • Chamber includes two interchangeable end pieces to accommodate process tubes with 2" O.D (standard) and 1" O.D ( via adaptor included, click the 'operation manual' at bottom to page 17 to learn how to install it)
  •  Heating elements embedded in ceramic fiber insulation provide rapid chamber heat-up and cool-down.
  •  All models shipped complete with power cord.
  • The tube furnace cab be placed in multi-position: Use furnaces vertically or at an angle to grow electronic crystals for semi-conductor industry. Rotate vertically for sintering applications.
  • You may order  1" dia x 24" length   or 2"dia x 24" length quartz tube and vacuum flanges to make sealed tube furnace ( see related product below )
  • CE certified
  • Optional:        Please order quartz or ceramic tubes and sealing kits at the  Furnace  Accessories

SPECIFICATION

Furnace Structure

Muti-position adjustable

2"-1" Tube adaptor included

 Tube Size

  • 1" and 2" Dia. (25.4 mm and 50.08 mm)

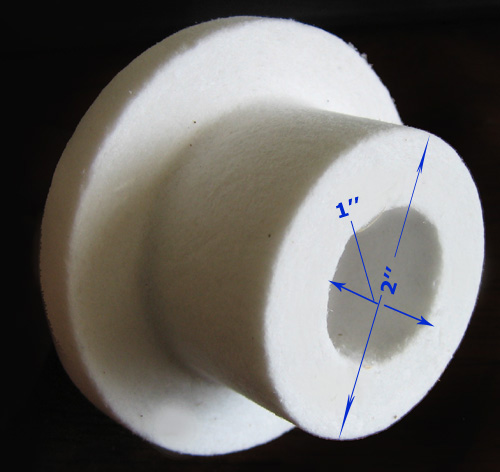

  • 2'' to 1'' adapter made of refractory ceramic is include (Click here for details)

 Amps

20 Amps
 Power
 		1200W

 Voltage

AC 110V Single Phase

 Working Temperature
  • Max. Temperature: 1100 °C
  • Continuous working temperature: 1000 °C
  • Max. Heating Rate: 20°C /min
 Temperature Distribution

 Temperature controller

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise process
  • Built in protection for over-heated and broken Thermal couple.
  • Temperature Accuracy: +/- 1 °C
  • K type thermal couple
 Heating Element &
      Heating Zone Length
  • Heating Element:  Fe-Cr-Al Alloy doped by Mo
  • Heating ZoneLength: 12" (300mm)
  • Constant Temperature Zone:  3.1" (80mm)


 Dimension

 10" x 15" x 16"   (26 x38 x40 cm) (D x H x W) (Click here for details)

 Shipping package size



21"x34"x25"(530 x 865 x 640mm)

 Shipping weight

60  lbs

 Warrant
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
 Certificate




Notices:
