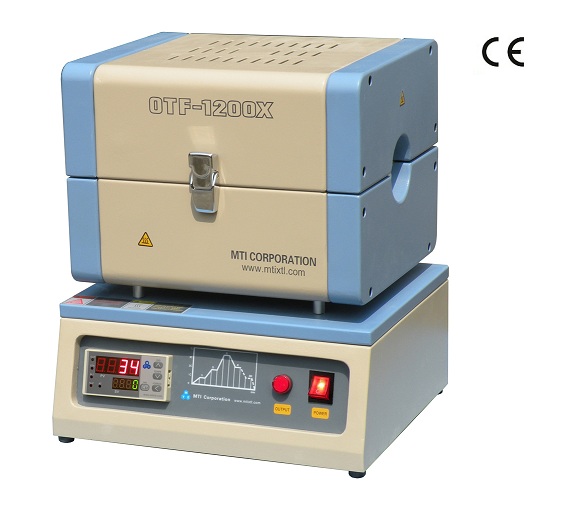

1-2" 1100°C Compact Split Tube Furnace with 8" heating Zone & 30 segment Controller - OTF-1200X-SNT-110
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-SNT-110
Personalization
* denotes required field
Chamber Diameter for Tube*
|

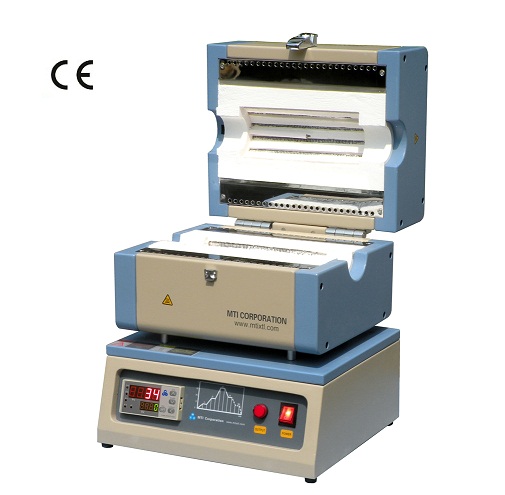

OTF1200X-SNT is a CE certified compact and energy saving split 1" or 2'' tube furnace with max. working temperature 1200°C and 1200W power consuming. . Precision temperature controller can provide 30 segments heating and cooling steps with +/- 1 °C accuracy. The furnace dose not include working tube. You may to order 2" quartz tube, vacuum flange and ceramic block according to your application
|
Specifications
|
|
Furnace Structure
|
- Double layer steel structure.
-
High purity Al203 fibrous insulation with Max. energy saving
-

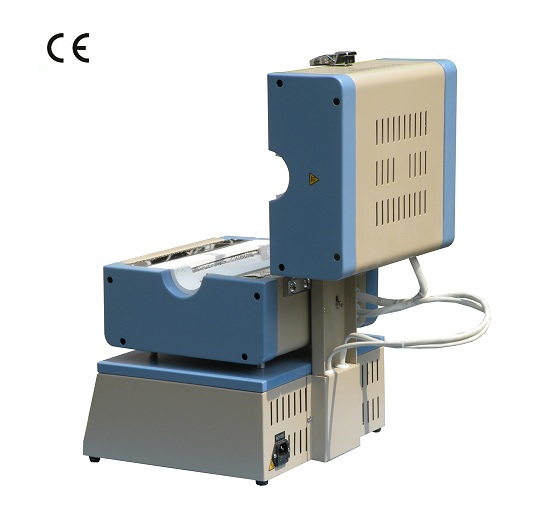

Split cover for easy change working tube
-
Accept 1" work tube (Add $25 for 2'' )
-
Compact size: 340mm×300mm×400mm ( W x L x H)
|
|
Power
|
1.2 KW
|
|
Voltage
|
110VAC
|
|
Max. Temperature
|
1200°C (<1 hour)
|
|
Continuous Temperature
|
1100°C ( continuous)
|
|
Max. Heating Rate
|
<= 10 °C/min
|
|
Heating Zone length
|
8" (200mm) ( single zone ). The following picture shows the temp. distribution across the heating zone, please click to enlarge.
|
|
Constant temp. zone
|
2.3" (60mm) (+/-1°C) @ 900 °C
|
|
Temperature controller
|
|
|
Temperature Accuracy
|
+/- 1°C
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|
Dimension
|
340mm×300mm×400mm ( W x L x H)
|
|
Net Weight
|
18 Kg
|
|
Shipping package size
|
18 x 27 x 22 inches (W x L xH)
|
|
Shipping weight
|
70 lbs
|
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
| Certificate
|
 CE certified
|
|
