1100°C Compact Split Tube Furnace with Vacuum Flanges & 1"-2" Quartz Tube - OTF-1200X-S
|
Click to enlarge
|
Product Options
| |
|
OTF1200X-S is a CE certified compact and energy saving split tube furnace with max. working temperature 1200°C and 1200W power consuming. The furnace is installed with 1" or 2" O.D quartz tube ( optional ) with a pair of smart stainless steel vacuum sealing flange, 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose, which allow to heat sample in vacuum or flowing gas. Precision temperature controller can provide 30 segments heating and cooling steps with +/- 1 °C accuracy.
|
Specifications
|
|
Furnace Structure
|
- Double layer steel structure.
-
High purity Al2o3 fibrous insulation with Max. energy saving
-
Split cover for easy change working tube
-
Compact size: 340mm×300mm×400mm ( W x L x H)
|
|
Power
|
1.2 KW
|
|
Voltage
|
110VAC or 220VAC
(Please select the voltage in the option bar)
|
|
Max. Temperature
|
1200°C (<1 hour)
|
|
Continuous Temperature
|
1100°C ( continuous)
|
|
Max. Heating Rate
|
<= 10 °C/min
|
|
Tube Size
|
-
1" quartz tube (25mm O.D x 20mm I.D x 450mm L)
or 2" quartz tube (50mm O.D x 43mm I.D x 450mm L)
(Please select the tube size in the option bar)
-
Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
-
Quartz block (Optional) is ideal for more cleanness and higher vacuum.
|
|
Heating Zone length
|
8" (200mm) ( single zone )
|
|
Constant temp. zone
|
2.3" (60mm) (+/-1°C) @ 1000 °C
|
|
Temperature controller
|
PID automatic control via PWM solid relay with 30 steps programmable.
|
|
Temperature Accuracy
|
+/- 1°C
|
|

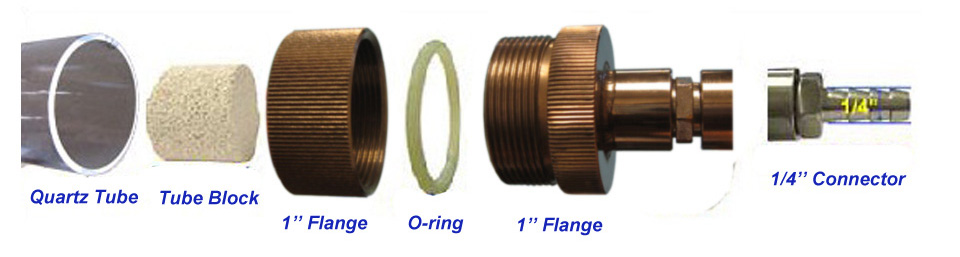

Vacuum Flange
|
Two stainless steel flanges with vacuum gauge and valves. 1/4" pipe adapters are installed in two ends.
|
|
Vacuum Level
|
10-2torr (by mechanical pump)
|
|
Fitting Ports
|
-
In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click underline to order.
-
For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting, please click underline to order.
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|
Dimension
|
340mm×300mm×400mm ( W x L x H)
|
|
Net Weight
|
18 Kg
|
|
Shipping package size
|
48'' x 24'' x 28''
|
|
Shipping weight
|
100 lbs
|
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
| Certificate
|
 CE certified
|
|
|
|
|
|
