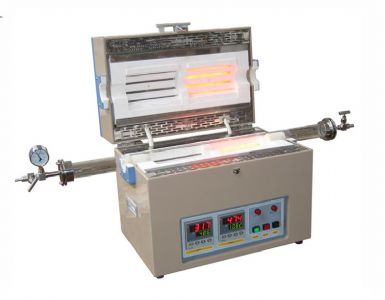

Dual Zone Split Tube Furnace with Vacuum Flanges & 3.25" (80mm ) Quartz Tube - OTF-1200X-80-II
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-80-II
|
OTF-1200X-80-II is a CE certified 3" I.D. split two zones tube furnace, which can achieve faster heating up to 1200oC and create a different thermal gradient by adjust two zone temperature. The furnace includes one 3.25" O.D x 3" I.D x 40" L fused quartz tube with vacuum flanges and valves for immediate use. Two 30 segments programmable temperature controllers are installed. The microprocessor-based self-tuning PID control provide excellent control without overshooting of set temperature with. It is perfect tool to prepare nano materials or film by CVD (click here to see temperature profile with max thermo gradient under various temperatures)
|
Specification
|
|
Furnace structure
|
|
| Power
|
4 KW
|
|
Voltage
|
AC 208-240V Single Phase, 50/60 Hz , Power cord is included without plug.
|
|
Temperature range
|
100~1100° C (Continuous); 1200° C (<1 hour)
|
|
Max. Heating Rate
|
<= 20° C /min
|
|
Tube Size
|
-
3.15"Dia. x 2.83" I.D x 40"L fused quartz tube (80 OD x 72 ID x 1000L mm)
-
Two fiberous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
-
Quartz block (Optional) is ideal for more cleaness and higher achievable vacuum.
|
|
Heating Zone Length
|
|
|
TemperatureControllers
|
-
Two Precision Digital Temperature Controller, and each has 30-segement programmable with alarm and over heating protection
-
You can set up two zone at different temperature to create a thermal gradient for CVD deposition
-
or you can set up two zone at same temperature to create a longer constandard temperature zone ( about 250mm )
|
|
TemperatureAccuracy
|
+/- 1° C
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
| Fitting Ports
|
 (click the picture to see the details)
|
|
Net Weight & Dimension
|
about 30 kg; 590 x 380 x 520 mm
|
|
Warranty
|
One year (No warranty on quartz tubes)
|
|
Dimension after crating
|
45x45x35"
|
|
Shipping weight
|
200 lbs
|
|
Warranty
|
One year limited warranty for electrical parts. (Consumable parts such as processing tubes,
o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
| Certificate
|
 CE Certificate
|
| Notices
|
|
| Standard Package
|
|
Item No.
|
Description
|
Qty
|
Quick Link
|
| EQ-F-T-block-70
|
Alumina Foam Block: 70 mm Diameter (one pair) for 80mm dia. Tube Furnace
|
2 sets
|
|
| EQ-FL-82-II
|
Vacuum Flange for 80mm dia. Tube Furnace
|
1 set
|
|
| EQ-QZTube-80D40
|
3.15"Dia. x 2.83" I.D x 40"L fused quartz tube
|
1
|
|
|
|
Hex Wrench
|
1 set
|
|
|
|
|
|
|
|
|
Sale Price: USD$14,995.00
|
|
|
|
|
Sale Price: USD$34,950.00
|
|
| | |
|
