Split Tube Furnace with CF Flanges & 60mm SS-310S Alloy Tube for Ultral High Vacuum upto 10-6 Torr & 850 C - OTF-1200X-60HV

Furnace casing

·         Double layer steel casing with air cooling to keep furnace surface temperature lower than 60^oC.

·         High purity fibrous alumina insulation for Max. energy saving.

Power

3.0  KW  Max. ( 20A breaker required)

Voltage

AC 208-240 Single Phase, 50/60 Hz

Max. Temperature

850°C

Continuous Temperature

800°C

Max. Heating Rate

 <= 40°C /min

Processing Tube

·         Material: SS310S stainless steel seamless tube

·         Tube Size:  OD 60 x  ID 52 x  Length 1000 (mm)

Heating Zone length

440 mm ( single zone )

Constant temperature zone

150  mm (+/-1°C)

Temperature controller

PID automatic control with 30 steps programmable

Automatic over-heat and thermal broken protection

Temperature Accuracy

 +/ - 1°C

Vacuum Sealing & Connection

·         CF type stainless steel flanges welded to two end of tube.

·         KF-D40 vacuum port, KF-D25 gauge port, ball valves and one meter long SS pipe  are installed in one side flange for connecting to vacuum pump.

·         1/4NFS adapter and SS needle valve are installed in another flange for gas flow.

Vacuum Pressure limited

·         10E-3 torr by mechanical vacuum pump by KFD40 SS pipe

·         10E-6 torr by turbo-molecular pump by KFD40 SS pipe

·         Leak rate < 5 mtorr / min.

Heating Element

 Fe-Cr-Al Alloy doped by Mo

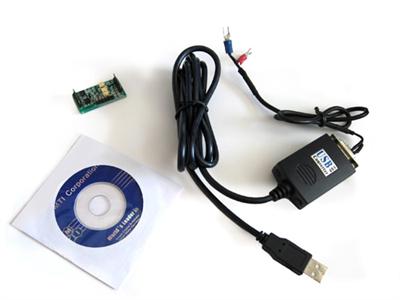

PC Connection

·         RS485 port is installed in front of panel to connect to PC

·         PC control module and software are included for computerized temperature control

·         Click picture below to review software function

Dimension

 550 x 380 x 520  mm

Net Weight

 50  Kg

Shipping weight

 200 lbs

Shipping package after crating

 45x45x35  inch

Warranty & certificate
