1500°C Compact Hydrogen Gas Tube Furnace with 42mm Alumina Tube and Hydrogen Detector & Shutdown Valve - GSL-1500X-42HG
|
Click to enlarge
|
In stock
Item Number: GSL-1500X-42HG
|

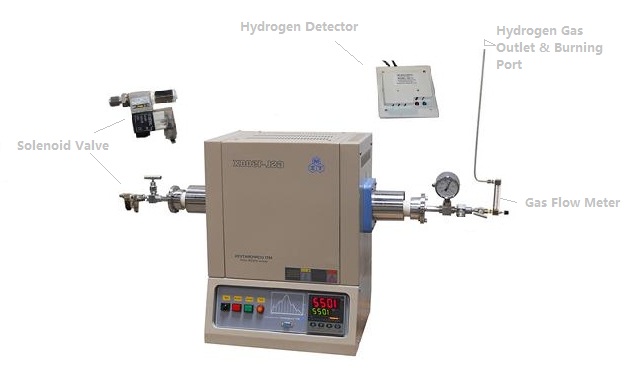

GSL-1500X-42HG tube furnace is designed for processing material under hydrogen gas up to 1500°C safely. The processing tube is made of 42 mm OD alumina, and one hydrogen gas detectoe is included which will shutdown hydrogen gas via a built in solenoid valve immediately once detecting hydrogen gas leaking Also the furnace can be used for all kind of inert gases and oxygen gas . Precision temperature controller is 30 segment programmable. .
Specifications:
|
Furnace Structure
|
-
Double layer steel casing with air cooling to keep furnace surface temperature lower than 60°C.
-
High purity fibrous alumina insulation for Max. energy saving.
-
Hydrogen detector and solenoid valve are included for safe operation
-

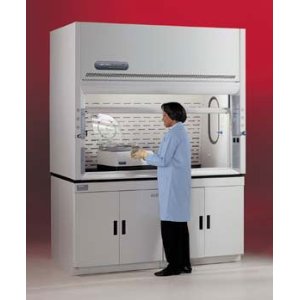

The hydrogen gas furnace must be placed under fume hood which is not included > If you don't have a fume hood, please order from a professional vendor.
|
| Power
|
4.0 KW Max. ( 20A breaker required)
|
| Voltage
|
AC 208-240 Single Phase, 50/60 Hz
|
| Max. Temperature
|
1500°C ( < 1 hour )
|
| Continuous Temperature
|
1400°C
|
| Max. Heating Rate
|
<= 10°C /min
|
| Processing Tube
|
· Material: High purity Alumina Tube max. 1600°C working temperature
· Tube Size: 42 O.D x 38 I.D. x 700 Length. (mm )
· Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
|
| Heating Zone length
|
6" ( 152 mm)
|
| Constant temperature zone
|
80 mm (+/-2°C)
|
|
Temperature controller
|
|
| Temperature Accuracy
|
+/ - 1°C
|
|
Flanges and Gas Inlet
|
- One pair stainless steel vacuum flange are installed on two ends of tube which allow high vacuum upto 10E-5 torr and 5 PSI positive pressure.
- One solenoid valve is installed on left of flange for Hydrogen gas inlet. It connects with hydrogen detector. Once hydrogen gas leak is detected ( 10% below hydrogen explode point ), gas inlet valve will be shutdown immediately
- One pressure gauge is installed on the end of gas inlet. Hydrogen gas pressure must be controlled under 5 PSI, which can be adjust by a stainless steel needle valve.
|
|
Left flange side
|
Right flange side
|
|
|
Gas-outlet
Flowmeeter & Hydrogen Detector
|
-
One 1000 ml/min floating meter is installed on gas-oulet end for adjusting gas flow rate
-
1/4" dia stainless steel tube is installed for burning hydrogen gas during gas flowing
-
One long lighter is included in the standard package for igniting hydrogen gas manually.
-
-
Solenoid Value automaticly shuts down the gas inlet in case of system failure
|
| Heating Element
|
|
| Dimension
|
400 x 300 x 530 mm (15.7" x 12" x 21")
|
| Net Weight
|
45 Kg
|
| Shipping weight
|
45 kg (100 lbs)
|
| Dimension after crafting
|
45" x 25" x 37" ( 120 Lbs)
|
| Warranty
|
One year limited warranty for electrical and mechanical parts
|
| Certificate
|
 CE certified
|
|
|
|
