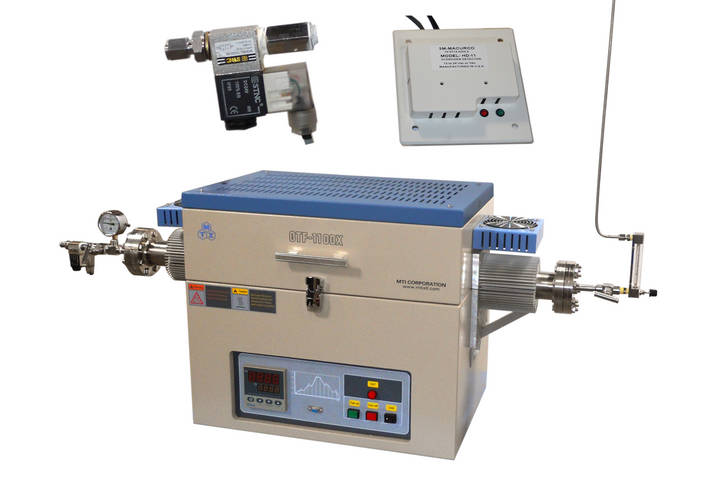

1100°C Hydrogen Gas Tube Furnace with 60mm Superalloy Tube with Hydrogen Generator & Detector System - OTF-1200X-60HG
|
Click to enlarge
|
Please email to info@mtixtl.com for lead time.
Item Number: OTF-1200X-60HG
|
OTF-1200X-60HG is the most safe hydrogen tube furnace in the world . The processing tube is made of high quality Ni-based super-alloy which never crack and broken at flowing Hydrogen gas and small 500ml/min ) hydrogen generator is included i nthe system. One 3M hydrogen detector is included which will shutdown Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking .
The tube furnace is designed for processing material under hydrogen gas up to 1100°C safely. . Also the furnace can be used for all kind of inert gases and oxygen gas up to 30 PSI. Precision temperature controller is 30 segment programmable.
Specifications:
|
Furnace Structure
|
-
Double layer steel casing with air cooling to keep furnace surface temperature lower than 60°C.
-
High purity fibrous alumina insulation for Max. energy saving.
-
Hydrogen detector and solenoid valve are included for safe operation
-

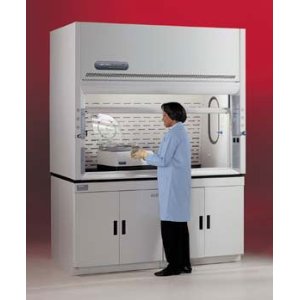

The hydrogen gas furnace must be placed under fume hood which is not included > If you don't have a fume hood, please order from a professional vendor.
|
| Power
|
3.0 KW Max. ( 20A breaker required)
|
| Voltage
|
AC 208-240 Single Phase, 50/60 Hz
|
| Max. Temperature
|
1100°C ( < 1 hour )
|
| Continuous Temperature
|
1000°C
|
| Max. Heating Rate
|
<= 20°C /min
|
| Processing Tube
|
|
| Heating Zone length
|
440 mm ( single zone )
|
| Constant temperature zone
|
150 mm (+/-1°C)
|
| Temperature controller
|
PID automatic control with 30 segments programmable
Automatic over-temperature and thermal broken protection
|
| Temperature Accuracy
|
+/ - 1°C
|
|
Flanges and Gas Inlet
|
- Two sets of CF-63 flanges are weld on two ends of tube which allow high vacuum up to 10E-5 torr and 30 PSI positive pressure.
-
One solenoid valve is installed on left of flange for Hydrogen gas inlet. It connects with hydrogen detector. Once hydrogen gas leak is detected ( 10% below hydrogen explode point ), gas inlet valve will be shutdown immediately
-
One pressure gauge is installed on the end of gas inlet. Hydrogen gas pressure must be controlled under 5 PSI, which can be adjust by a stainless steel needle valve
|
|
Gas-outlet
Flow-meter & Hydrogen Detector
|
-
One 1000 ml/min floating meter is installed on gas-outlet end for adjusting gas flow rate
-
1/4" dia stainless steel tube is installed for burning hydrogen gas during gas flowing
-
One long lighter is included in the standard package for igniting hydrogen gas manually.
-
-
One 6" long neck flexes safe lighter is included for lighting hydrogen gas
|
| Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
| PC Connection
|
|
Hydrogen generator
click to view details
|
QL-500 is a compact & light weight, save & cost effective , energy-saving & environmental friendly advanced hydrogen generator. It producing extremely pure hydrogen gas through the electrolysis of pure water without adding any alkaline . It can produce continuous / high purity H2 gas up to 500 ml/min with digital flow rate display, valve regulation and over-pressure safety protection. This generator is idea device to supply H2 gas for material processing, heat treatment and gas chromatography analysis, etc. in research laboratory instead of using heavy, expensive and unsafe hydrogen cylinder.
Note: the hytrogen detector has been set up to attach the hydrogen generator. When the alarm is activated the detector will immediately shut off the hydrogen generator to cut off the hydrogen gas input line in order to ensure the high level safety operation.
SPECIFICATION
|
Output Volume
|
< 510ml/min
|
|
Output Pressure
|
0.02 - 0.4MPa under stable pressure
|
| Hydrogen Purity
|
>99.999%
|
| Input Power
|
110V +/-15% 50 / 60Hz , <200W
|
| Contour Dimension
|
400x300x710mm, (LxWxH)
|
| Water Tank Volume
|
3.2L
|
| Water Consumption
|
24.1g/h
|
| Water Requirement
|
water electrical resistivity > M-ohm/cm
|
| Pipe size to be connected
|
1/8" O.D
|
| Weight
|
13 kg
|
|
| Dimension
|
550 x 380 x 520 mm
|
| Net Weight
|
50 Kg
|
| Shipping weight
|
200 lbs
|
| Dimension after crafting
|
45x45x35 inch
|
| Warranty
|
One year limited warranty for electrical and mechanical parts
|
| Certificate
|
 CE certified
|
|
Sale Price: USD$11,995.00
|
Sale Price: USD$19,995.00
|
|
Sale Price: USD$29,995.00
|
| |
|
| | |
|
