Split Long Tube Furnace with 5" Dia Quartz Tube (36" Heating Zone) & Vacuum Flanges - OTF-1200X-5L
|
Click to enlarge
|
In stock
Item Number: OTF-1200X-5L
|
OTF-1200X-5L is split 5" dia. x 55"L single-zone tube furnace which can achieve faster heating up to 1100°C. The furnace includes one 5" (125 mm) O.D fused quartz tube, one pair of vacuum sealing flanges and two vacuum valves & Pressure gauge for immediate use. The precision temperature controllers can provide 30-segment heating and cooling steps with +/- 1°C accuracy with 17" length constant temperature (flat) zone. It is an excellent furnace for annealing, diffusing and sintering samples in various atmospheres.
Thermo-couple, Power cord and 5" O.D. x 1400 mm length quartz tube and SS vacuum flange with pressure gauge & two ball valves are included for immediate use.
|
Specification
|
|
Power
|
6 KW
|
|
Voltage
|
AC 208-240 Single Phase, 50/60 Hz
|
|
Max. Temperature
|
1200° C (<1hr)
|
|
Continuous Temperature
|
1100°C
|
|
Max. Heating Rate
|
<= 20 oC /min
|
|
Tube Size and Materials
|
-
Made of high quality Fused quartz with size of 125 mm O.D x 120 mm ID x 1400 mm L
-
Optional diameter: 80mm, 100mm
-
Two fiberous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
-
Quartz block (Optional) is ideal for more cleaness and higher vacuum.
|
|
Heating Zone length
|
880 mm ( single zone )
|
|
Constant temperature zone
|
440 mm (+/-1° C)
|
|
Temperature controller
|
PID automatic control with 30 steps programmable
|
|
Temperature Accuracy
|
+/ - 1°C
|
|
Vacuum Seal
|
Two stainless steel flanges with vacuum gauge and valves
|
|
Fitting Ports
|
(click the picture to see the details)
|
|
Vacuum Level
|
-
10E-2 torr by mechanical vacuum pump.
-
10E-5 torr by molecular pump.
-
Leak rate < 5 mtorr / min.
|
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|

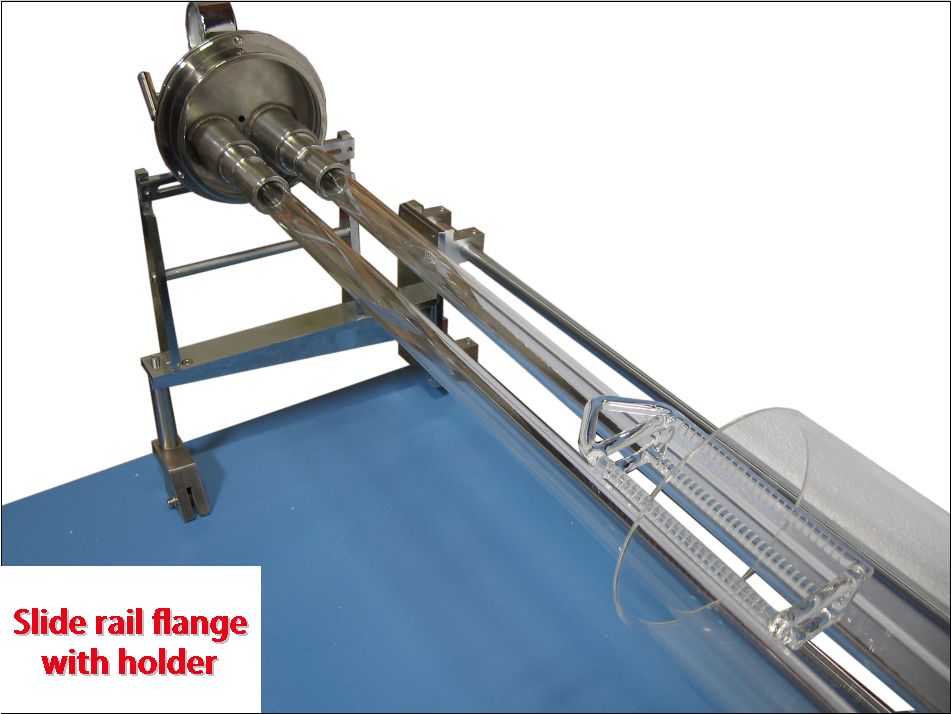

Sliding Flange
(Optional at extra cost)
|
-
Refer picture above , you may need to order two mobile carts to support sliding device ( click under lined to order the table)
|
|
Dimension
|
1100 X 450 x 670mm
|
|
Net Weight
|
80 Kg
|
|
Shipping weight
|
250 lbs
|
|
Shipping package after crating
|
65x45x35 inch
|
|
Warranty
|
One year limited warranty for electrical and mechanical parts. (Consumable parts such as furnace liner, processing tubes
and o-rings are not covered by the warranty, please order the replacement at related products below.)
|
