1500°C Max Tube Furnace (50mm OD) with Sliding Flanges for Fast Heating/Cooling - GSL-1500X-RTP50
|
Click to enlarge
|
In stock
Item Number: GSL-1500X-RTP50
|
GSL-1500X-50RTP is a CE certified slide-able tube furnace with 44mm ID x304.8 mm (12") L (one end closed) mullite and quartz tubes. The working temperature is up to 1500ºC. One pair of sliding rail is installed on bottom of furnace. The furnace can move manually from one side to achieve fast heating and cooling(details in the chart below). For the fastest heating, you can insert processing mullite tube into pre-heated furnace at desired temperature. For the fast cooling, you can move the tube from hot furnace with forced air cooling. The heating and cooling rate can be much more higher under vacuum or inert gases. It is ideal furnace for rapid thermal processing at lowest cost.
SPECIFICATIONS
|
Furnace Structure
|
|
-
Double layer steel structure with dual air cooling fans
-

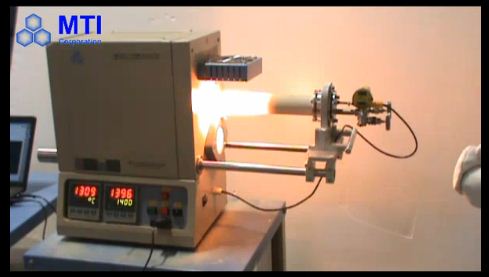

One sliding flange is installed on right side furnace, which can move processing tube in & out easily.
-
Vacuum flanges can reach 10E-5 torr by molecular pump or 10E-3 torr by mechanical pump. The flange has a 1/4" dia. thermal couple built in for monitoring real time temperature inside tube.
-
-
RS485 port is installed and ready to connect PC
|
|
Power
|
KW
|
2.5 ( 30A breaker required)
|
|
Voltage
|
V
|
AC 208-240V Single Phase, 50/60 Hz
|
|
Max. Temperature
|
oC
|
1500
|
|
Continuous Temperature
|
oC
|
1400
|
| Heating Elements
|
|
SiC rod (1500C grade) , 4 pcs
|
|
Heating & Cooling Rate

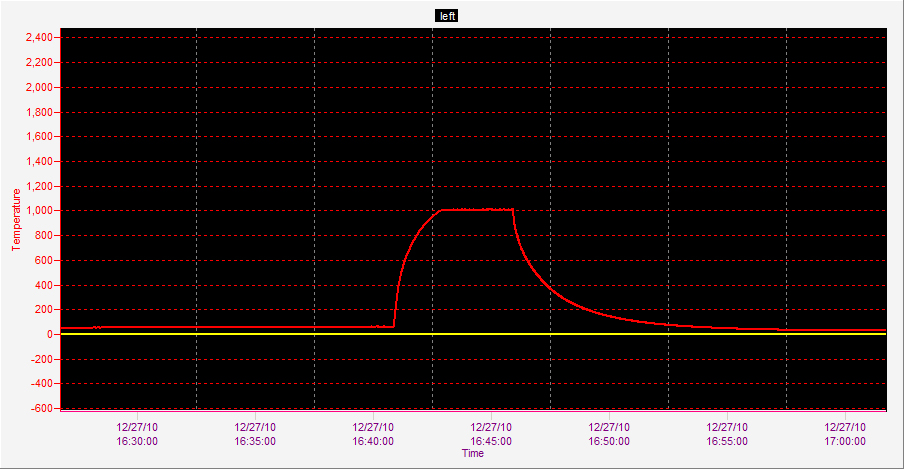

Temp - Time curve (mullite tube)

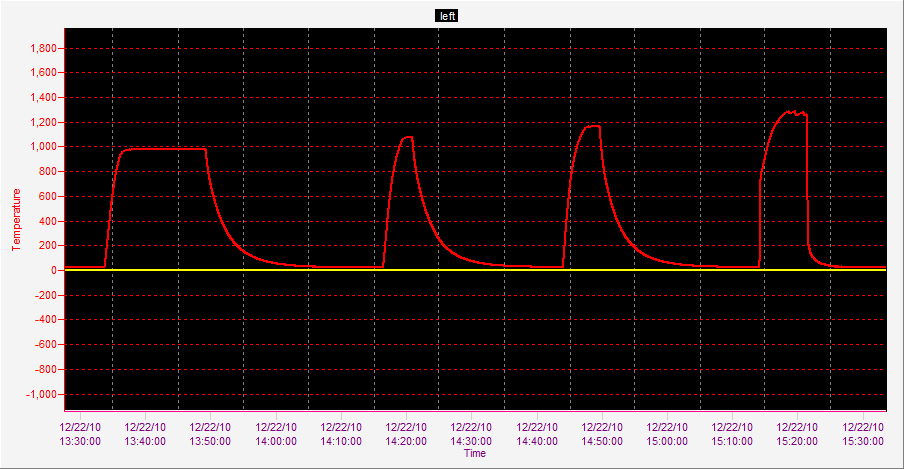

Temp - Time curve (Quartz tube)
|
oC /min
|
|
For Mullite Tube:
Heating speed:
10°C/sec (RT - 800°C);
7°C/sec (800°C - 1000°C);
4°C/sec (1000°C - 1100°C);
3°C/sec (1100°C - 1200°C);
1.5°C/sec (1200°C - 1300°C);
0.7°C/sec (1300°C - 1350°C)
Cooling speed:
14°C/sec (1350°C - 1000°C);
7°C/sec (1000°C - 800°C);
5°C/sec (800°C - 600°C);
3.76°C/sec (600°C - 500°C);
2.5°C/sec (500°C - 400°C);
1.36°C/sec (400°C - 300°C)
|
For Quartz Tube:
Heating speed:
30°C/sec (RT - 500°C);
12°C/sec (500°C - 800°C);
5°C/sec (800°C - 900°C);
3.6°C/sec (900°C - 1000°C);
1°C/sec (1000°C - 1100°C);
Cooling speed:
16°C/sec (1100°C - 800°C);
9°C/sec (800°C - 600°C);
5°C/sec (600°C - 500°C);
3.6°C/sec (500°C - 400°C);
2.5°C/sec (400°C - 300°C);
|
Note: To get the fast heating preformance, first keep the tube out of the chamber meanwhile pre-heat the chamber to the required temperature. Then insert the tube into the chamber to get fast heat.
|
|
Processing Tube Size
(One mullite tube and one quartz tube are included in the standard package)
|
mm
|
|
High quality mullite tube made in USA
Size: OD: 50mm x ID 44mm x 304.8mm L
|

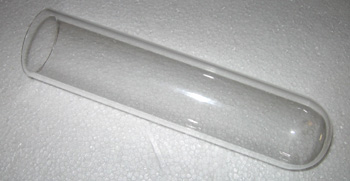

High quality one end closed quartz tube
Size: OD: 50mm x ID 44mm x 304.8mm L
|
|
|
Heating Zone length
|
mm
|
6" (152 mm)
|
| Constant temperature zone
|
mm
|
100 (+/-1oC) @ 800 - 1500 oC
|
|
Temperature controller & Meter
|
|
-
PID automatic control via PMW Solid relay with 30 segment programmable & Over-heated protection.
-
Two S type thermal couples are included. One is built in furnace to control furnace temperature, and another inserted into tube to monitor sample real temperature profile
-
MTI PC software and interface is included to allow you control and monitor temperature profile of the furnace by PC (click here to review detail information)
|
|
Temperature Accuracy
|
°C
|
+/ - 1
|
|
Vacuum Seal& Digital Vacuum Gauge
|
|
|
|
Vacuum Level
|
torr
|
limited by pump. ( pump is not included )
|
|
Sliding Flange
|
|
|
|
Dimension
|
mm
|
-
400 x 304.8 x 530 mm (15.7" x 12" x 21")
|
|
Net Weight
|
Kg
|
about 45
|
|
Certificate
|
|
CE certified
|
|
Shipping package size after crating
|
inch
|
60x45x35
|
|
shipping weight
|
lbs
|
150
|
| Warranty
|
|
One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
| Optional and Notice
|
|
|
|
Optional High Vacuum Package
|
|
In order to achieve to achieve a vacuum level of 10^-5 torr, we strongly suggest you use Turbomolecular pump, KF25 adapter with stain steel vacuum pipe, Please order upgraded accessories as the follows
|
|
Description
|
Quantity
|
links
|
Unit Price
|
|
Compact Turbomolecular Vacuum Pump Station (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows - Made in Germany - EQ-PV-HVS
|
1
|
|
USD$9950.00
|
|
1/4NPS to KF-25 Adapter- EQ-NPS-KF25-S
|
1
|
|
USD$49.95
|
|
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adapter
|
1
|
|
USD$29.95
|
 |
Sale Price: Starting at USD$1,290.00
|
|
Sale Price: USD$19,995.00
|
|
|
|
|
|
| | |
|
