500°C Vacuum Oven (12x12x11", 25L, ) With Water-Cooling, Gas Inlet Port & Vacuum System - EQ-DZF-6020-HT500P
|
Click to enlarge
|
Product Options
| |
|
Product Description
- The oven can be heated up to 500°C and able to hold the temperature for long period with compact chilling water recirculating system & anti-corrosion coolant.
- The water cooling jacket is built inside oven door. One 16L/min, 5-35ºC digital controlled recieculating water chiller. is included to keep rubber o-ring cold and save water & earth.
-
Chamber is made of Stainless steel 304 with 25 L capacity ( 300 mm x 300 mm x 275 mm)
-
3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
-
28 segments programmable digital temperature controller with +/- 5°C accuracy
-
1/4" swagelok gas inlet port is built in for filling inert gases
-
KF25 vacuum port, stainless steel pipe and vacuum pump are included for immedaite use
Specifications
| Voltage
|
110VAC or 208-240VAC (50/60 Hz) , Please select from product option
|
| Power
|
1800 W
|
| Heating Temp
|
|
| Inner Chamber size
|
300 mm x 300 mm x 275mm ( 12 x 12 x 11", 25 Liter )
|
| Temperature controller
|
28 segment temperature controller with +/- 2ºC accuracy
Click below picture to see Temperature controller instruction video
|
| Vacuum & Gas flow
|
- One 1/4" swagelok tube fittings on the back panel to connect the gas supply
-
Built-in 50~500ml/min flow-meter with needle valve and precisely controls flow rate of gas
-
KF25D vacuum port for quick connection to vacuum pump
- Introducing gas at a constant flow rate defined by user during operation.
- The oven can be purged by inert gas before operation.
-
Dual stage vacuum pump with with Exhaust Filter help pull vacuum < 133pa 0r 2 Torr)

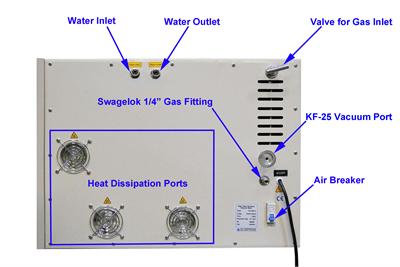

 Back Ports
 Flowmeter
 vacuum pump
|
| Water cooling
|
|
| Outside size
|
590 x 490 x 450 mm(24" x 20" x 18")
|
| Certificate
|
CE certified
|
| Warranty
|
One year limited manufacture warranty (Note: Comsumable parts such as silicon gaskets are not covered by the warranty)
|
Note: It is normal that the stainless steel chamber interior loses its shine due the 500C high temperature testing.
Standard package
P/N
|
Name
|
Qty
|
-6020-HT-1
|
High temp. Vacuum oven (12 x 12 x 11", 25L, 400°C)
|
1
|
-6020-HT-2
|
|
1
|
-6020-HT-3
|
Ø12mm Polyurethane tube
|
2
|
-6020-HT-4
|
Stainless steel shelves
|
2
|
| -6020-HT-5
|
Power cord
|
1
|
|
|
1 set
|
|
