Economic Double Step Rotary Vane Vacuum Pump, 226L/m, with Exhaust Filter & KF-D25 Inlet - EQ-2TW-4C


Sale Price: Starting at USD$998.00
If you are international, please click this.

Product Options

Accessories:
Specifications:
Model EQ-2TW-4C two steps high-speed vacuum pump
 Voltage / Frequency AC 220V 50/60Hz Single Phase
 Rate (m3/h) 13.6  ( 8.0 CFM,  226 liters / m )   (Please click here to convert metric to English unit)
 Maximum Pressure 5.0E-2Torr with chamber connected
( click to see
conversion of pressure unit)
 Power (HP)  3/4HP  550W
 Volume of Oil (ml)  1000 ( included )
 Working Temperature  -5 ~ 60 ℃
Vacuum  Pump Oil &
Vacuum Pump Exhaust System
with KF-D25 Adapter & Quick Clamp (Included for immediate use)
  • 32 Oz high-quality oil is included for immediate use ( click picture below left to order spare)
  • Oil Mist Eliminator is included
    • Eliminates Pump Oil Fumes
    • Returns Used Oil to Vacuum Pump
    • Traps Particles to 0.3 microns
    • Replaceable Coalescing Element

        (Please click the picture above to see product details)
Vacuum port fitting (Default)

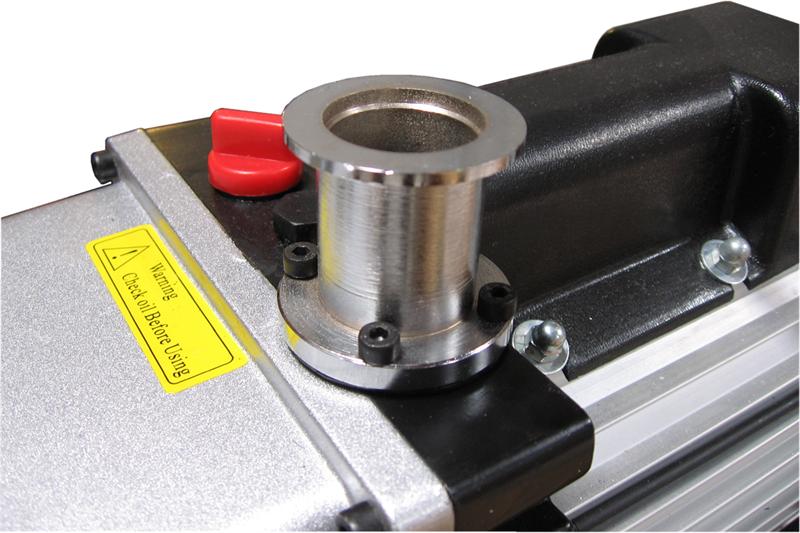

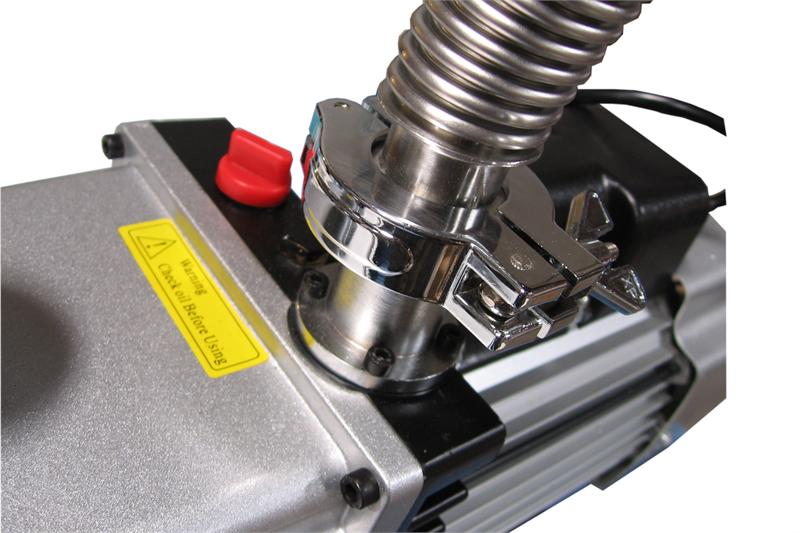

KF25D vacuum pipe adapter, click the picture to enlarge:

Inlet fitting (Optional)

 3/8 inch hose connector (Upon request), click the first picture to enlarge:
 Hose connector Inlet (Upon request)click the second picture to enlarge:
 null     null

Assimilation Trap (Optional)

 Weight (kg); Dimension (mm)  19kg  (51 lbs); Dimension: 21"x9"x14"
 Certificated
  • CE approval
 Drawing
Warranty
  • One year limited warranty with lifetime support. (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:
  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.)
  • AttentionThis Pump is not suitable for continuous operation more than one hour. For continuous operation please consider an EQ-YTP-550-LD Pump.
Operation Instructions
Application Note & Warnings
  • To protect the environment & human health, please use Traps & Filters to minimize exhaust.
  • To protect vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the pump foreline ( click on the pictures below for details ).

  • Manufactuer Warning :This pump is NOT suitable for continuous operation for more than an hour. For an application of longer pumping period, please select heavy duty rotary vane vacuum pump  or EQ-FYP-Pump or EQ-YTP-550 at the related product below
  • Pump is NOT suitable for high vacuum applications ( lower than 5.0E-2 Torr pressure level ).


Vacuum pump and KF-25 Vacuum Suite includes:

Part No.

Product Name

 Quantity

links

EQ-2TW-4C

Double Step Rotary Vane Vacuum Pump, 226L/m

1

 EQ-KF-Clamp-D25

Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adaptor

4

EQ-CG-4L

Vacuum Pump Exhaust Filter with KF-D25 Adaptor

1

EQ-OTS-KF25

Oil Trapping Sphere - Prevents Oil Backstreaming

1

  EQ-KF-Pipe-D25

Vacuum bellows with KF-D25 adaptor (1m)
1

EQ-KF-Valve-D25

KF25 Vacuum Right-Angle Valve
1
