Vacuum Sealing Assembly for Single End 60mm dia.Tube with Vacuum Meter/ Valve - EQ-HFL-60
|
Click to enlarge
|
In stock
Item Number: EQ-HFL-60
|
2This is a smart sealing assembly for one end of 60 mm O.D. tube and one end closed tube.
- Made of Stainless Steel with double high temperature silicon O-rings on each flange.
- The end has a vacuum meter with valve.
- Seal tube by tighten screws on the flange without any welding and glue.
- 1/4" hose connector at the end.
- 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose.
- Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
- The assembly kit will seal 58-60 mm diameter ceramic and quartz tube.
| Package included
|

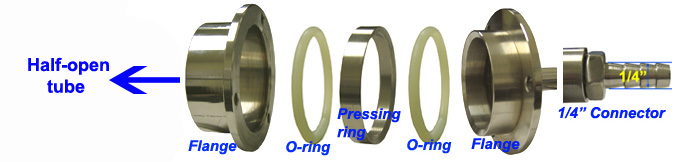

one flange with gauge and valve, one steel sealing rings, two high temperature silicone O-rings ( 300oC Max., and six screws
|
| Warning
|
Must put a refractory tube block in front of flange ( see picture below ) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products
|
How to seal a ceramic tube using the assembly, please follow the photos below:
|
Install this kit to the oen end closed tube for induction heater (click picture to enlarge)
|
Assemble the this kit to the induction heater provided by MTI to do vacuum heating
|
|
|
|
| | |
|
