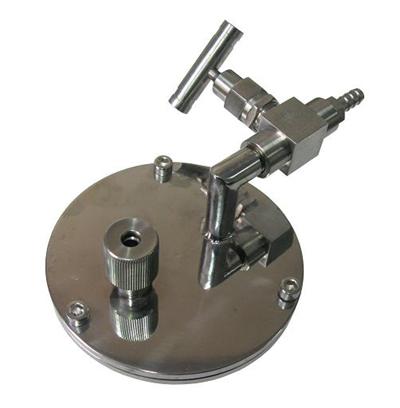

Sealing Flange for Single End 60mm dia.Tube with 1/4" Fitting & Vacuum Valve - EQ-FG-60TCV
|
Click to enlarge
|
In stock
Item Number: EQ-FG-60TCV
|
This is a sealing flange with 1/4" ID fitting and valve for for one end of OD 60 mm diameter tube. One 1/4" diameter thermal couple or ceramic tube can be inserted into processing tube through flange with vacuum sealed. It can be used for calibrating or controlling tube furnace temperature under vacuum condition, or measure sample electronic properties at high temperature
- Made of Stainless Steel with double high temperature silicon O-rings on flange.
-
1/4" ID fitting with silicon O-ring sealed and accept 1/4" diameter thermal couple or a tube.
-
Stainless steel needle valve with 1/4" pipe adaptor.
-
The assembly kit will seal one end of 60 mm diameter ceramic and quartz tube.
-
|
1/4" Dia. Thermal couple or tube can be inserted to inside tube with vacuun sealed on the flange
|

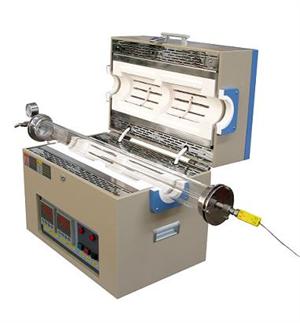

 It can be used for calibrating or controlling tube furnace temperature under vacuum
|
 1/4"dia tube can be inserted to inside tube via the flange to measure sample properties under various temperature
|
1/4" Dia. ceramic tube can be inserted into the tube with vacuum sealed on the flange.
It can be used to measure the sample's electrical properties at high temperature.
How to seal a ceramic tube using the assembly, please follow the photos below:
|
|
| | |
|
