500Kg Max. Economic Nail Penetration Tester Driven By Compressed Air for All types of Li-Ion Batteries -- MSK-800-TE9002


Please email for lead time
Item Number: MSKTE9002
Transported by LTL Freight (Truck)
MSK-800-TE9002 is an economic nail penetration tester for all types of rechargeable batteries, which meets international standards. The nail penetration is carried on a safe and vented stainless steel chamber using a 2~8 mm diameter steel nail at variable speed from 10~40mm/s. There is a fixture to tighten various type cells, pouches or cylinders in the safety chamber. It is an important tool for advanced research on the rechargeable battery.

SPECIFICATIONS:

Power
  • 208V- 240VAC standard, 500W
  • To use the unit at 110 V, please order 500W transformer,
Control Panel
  • Driving Force is adjustable by air cylinder valve.
  • Digital Display for impact force on the control panel
  • Minimum 100 PSI air compressor with 2 gallons tank is required to drive the machine
    • ( Air Compressor is not included, please order it at local  or order separately by clicking underlined)
  • Please click the picture to the left to view details.
  • Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
               pic1                pic2
Penetration Force
  • 0 ~ 500 kg
  • Suitable for single-cell and small battery pack.
Steel Nails
  • Seven steel nails (HSS) (2mm, 3mm, 4mm, 5mm,6mm, 7mm & 8mm diameter) are included in the standard package, please click the picture on the left to view details.
  • Other diameter nails can be ordered upon request.
Penetration Speed 0~80mm/s adjustable
Dwell Time 0-9999 seconds
Working temperature RT ( room temperature )
Operation Chamber


  • The chamber inside is made of stainless steel to resist fire and easy to clean.
  • There is a front observation window which is made of double layers of high strength glass.
  • Chamber size:  16" x16 "x 16" ,  ( 400 x 400 x 400mm )
  • One clamp driven by compress air can hold sample tightly
  • Max. sample size can be accomodated:  8"x8"x8"  (200 x 200x 200 mm ).

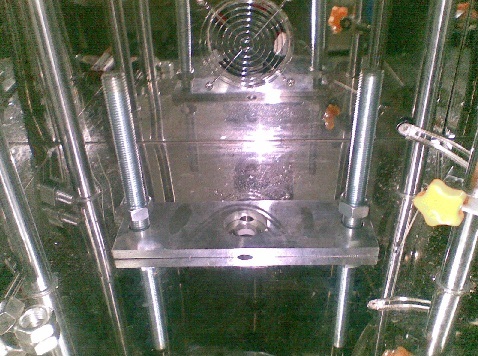

  • Please click the picture to the left to view details.
Features on the back

  • Easy electrical connection with the control stage
  • One exhaust fan is built inside of the chamber to remove smoking.
  • Air venting port is 145mm in diameter, which must be connected to vent port in your lab via a tube ( not included, please order at a local hardware store )
  • Quick connection for 8mm O.D compresses air tubing
  • Two side ports allow electrical cables pass-through
  • Pressure release door prevents pressure built up inside the chamber
Machine dimension
 36"L x 20"W x 58" H   (920x 510x1470 mm )
 4 mobile wheels are installed at the bottom and allow an easy move.

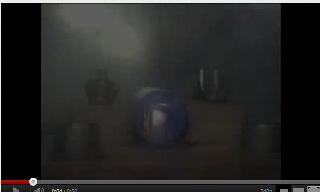

Operation Video

Net weight: 330 lbs ( 150Kg)
Shipping weight 600 lbs
Shipping Dimension 47" x 40" x 71"
Warranty
One year limited with lifetime support
Compliance
  • CE certified only
Application & Safety Note
  • The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 4.2V@ 40Ah for single cell  or 160Wh for battery pack without protection circus
  • The Machine must be put in the isolated fire-poof room or  fume-hood with venting & extinguish system。
  • Operation unit shall be located in outside room or fume-hood
